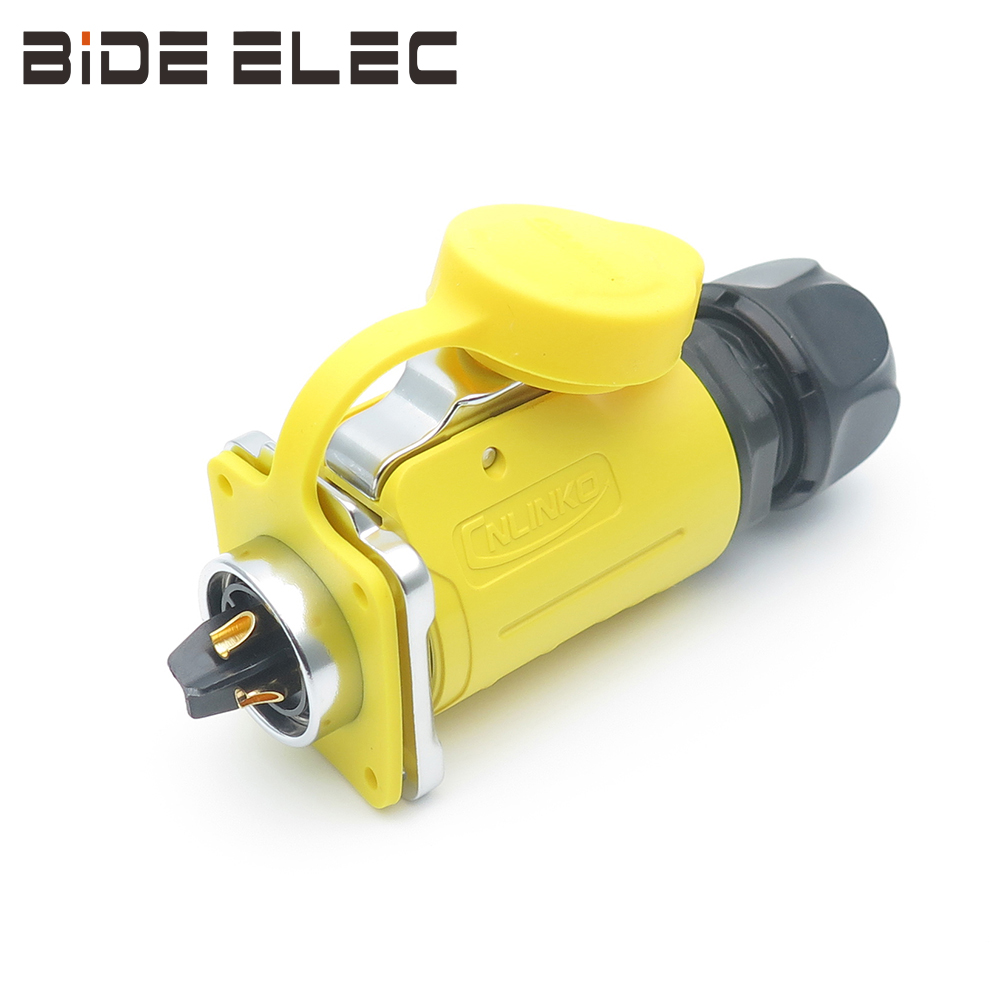

Cnlinko LP20 3Pin Power Waterproof Industrial Connector

Market Price: 6.21

Wholesale Price:$ 5.65

LP20 series power connector, also known as aviation waterproof power plug, has the characteristics of waterproof, fireproof and sunscreen, which replaces the traditional wiring mode and is more widely used in various fields ;<
LP20-3 aviation plug is 3-core, which is made of American imported materials through multiple processes in strict accordance with international aviation plug standards ;
LP20-3 waterproof connector, through the UV0 fire retardant test, has high standard IP67 waterproof, fireproof and sunscreen, and is safe and reliable ;
LP20-3 power connector adopts 4U gold plated connector, with strong conductivity and no oxidation, extending service life ;
LP20 series has seven models, with different number of cores corresponding to different currents, which can meet the requirements of current and signal transmission at the same time
2 / 3 / 4 core: rated current: 20a, bus diameter: 9-13mm, applicable wire diameter range: 2.5-4mm²
5-7 core: rated current: 12a, bus diameter: 7-9mm, applicable wire diameter range: 1.0-1.5mm²
9-12 core: rated current: 5A, bus diameter: 5-7mm, applicable wire diameter range: 0.5-0.75mm²
Cnlinko aviation waterproof plug have passed the certification and testing of the world's top ten organizations, including TUV, UL, VDE, SA, LR, CE, CQC, etc. ;

点击购买

Technical parameters:
Number of cores: 3
Rated current: 20A
Working voltage: 500V
Withstand voltage: 2.5KV
Contact impedance: <1.0mΩ
Temperature range : 20A 30°C ↓ 、25A 40°C ↓、30A 50°C ↓
Contact size: Φ 2.7 * 3
Mechanical life: 1700 times
Thread torque: 42-53 (N.m), torque wrench 200 (N.m)
Temperature and humidity: - 40 °C ~ + 80 °C
Vibration: frequency 5-200hz, amplitude 5mm, speed 10m / s, 0.10, no instantaneous open circuit
Impact resistance: 294m / s2
Salt spray: ph6.5-7.2, NaCI, 5% 48h
Applicable matching wire diameter: Φ 8-12 (mm)
Fire rating: IP67

Material description
Shell and insulating parts: high performance engineering plastics
Hardware: zinc alloy (Pearl hard chromium)
Copper needle: copper alloy (gold plated)
Waterproof ring: silicone
Flame retardant grade: UL94-V0

International certification
TUV, UL, VDE, SA, LR, CE, CQC, etc
