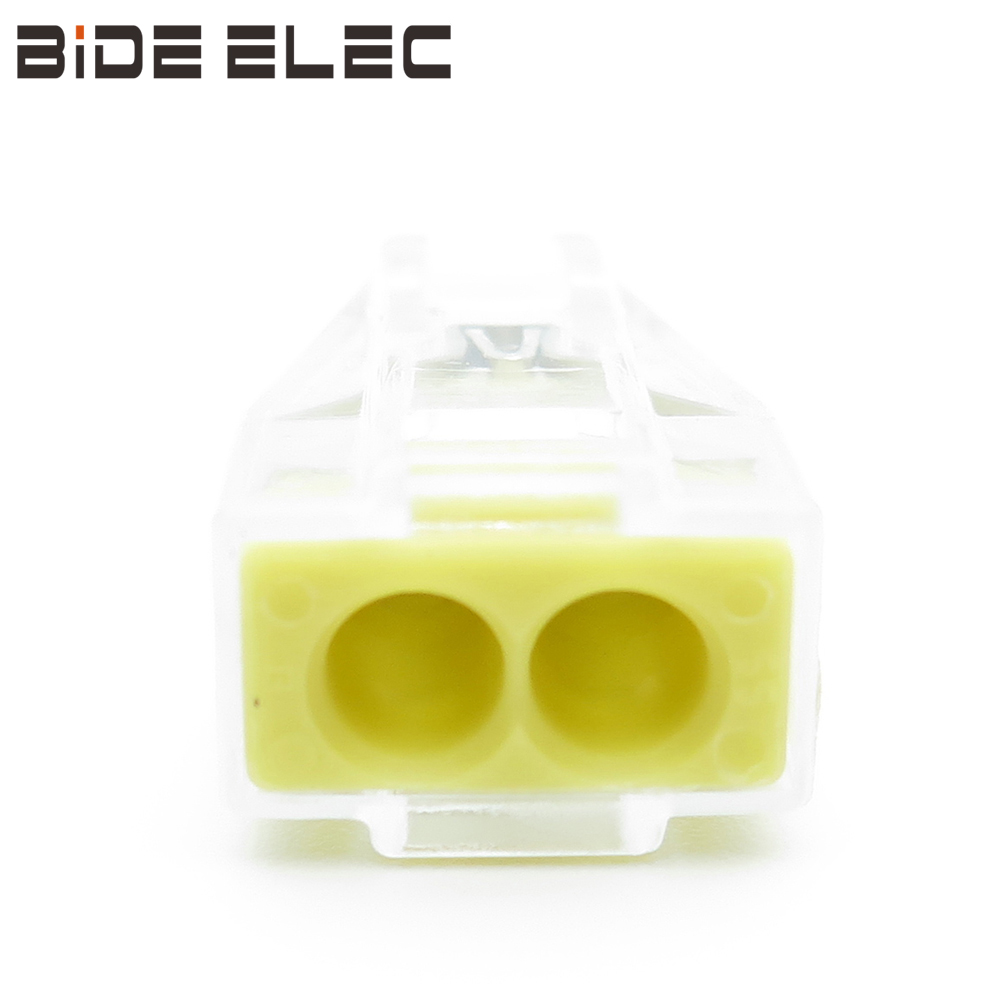

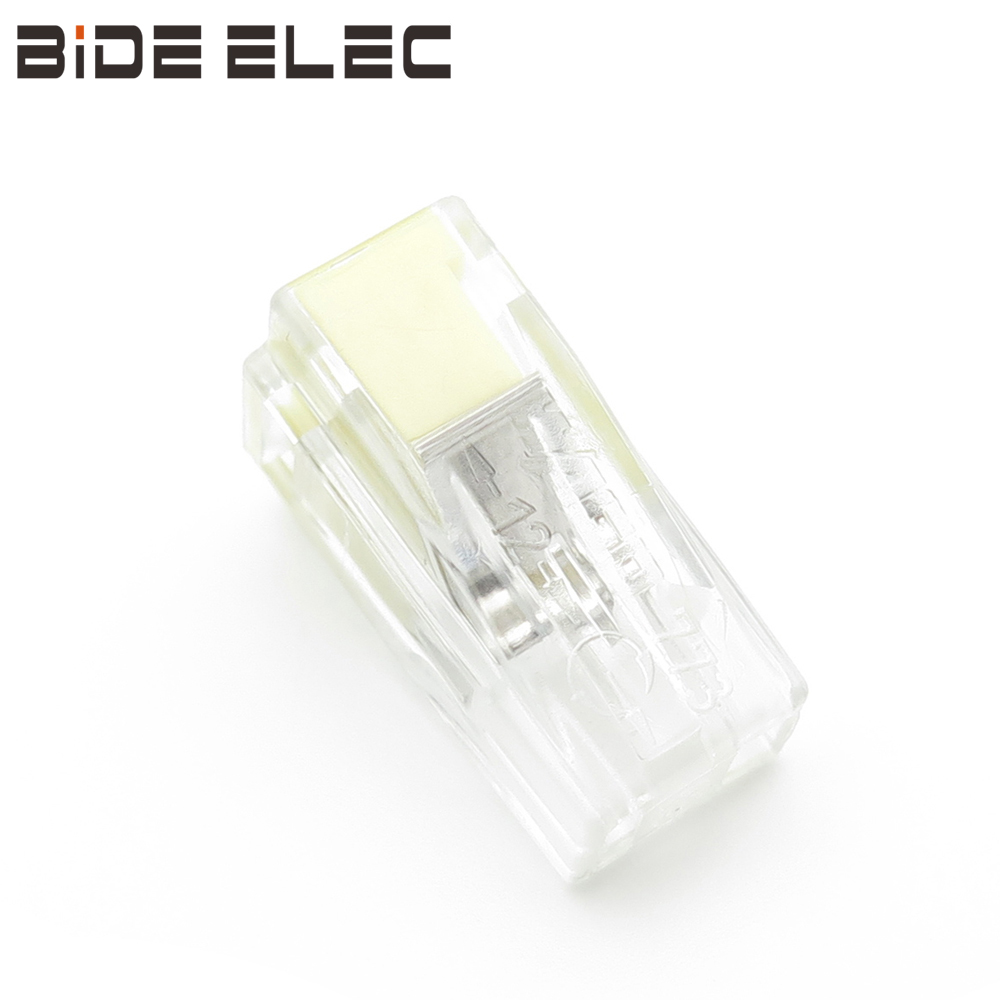

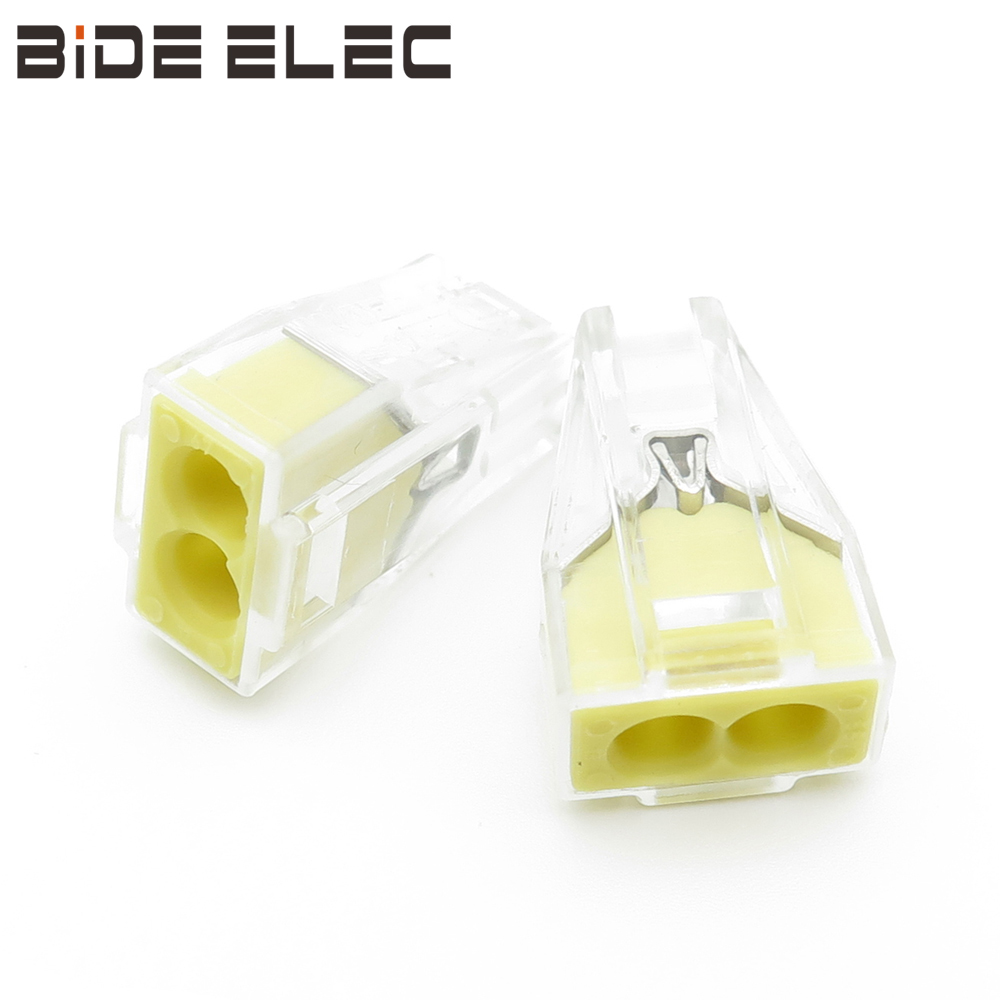

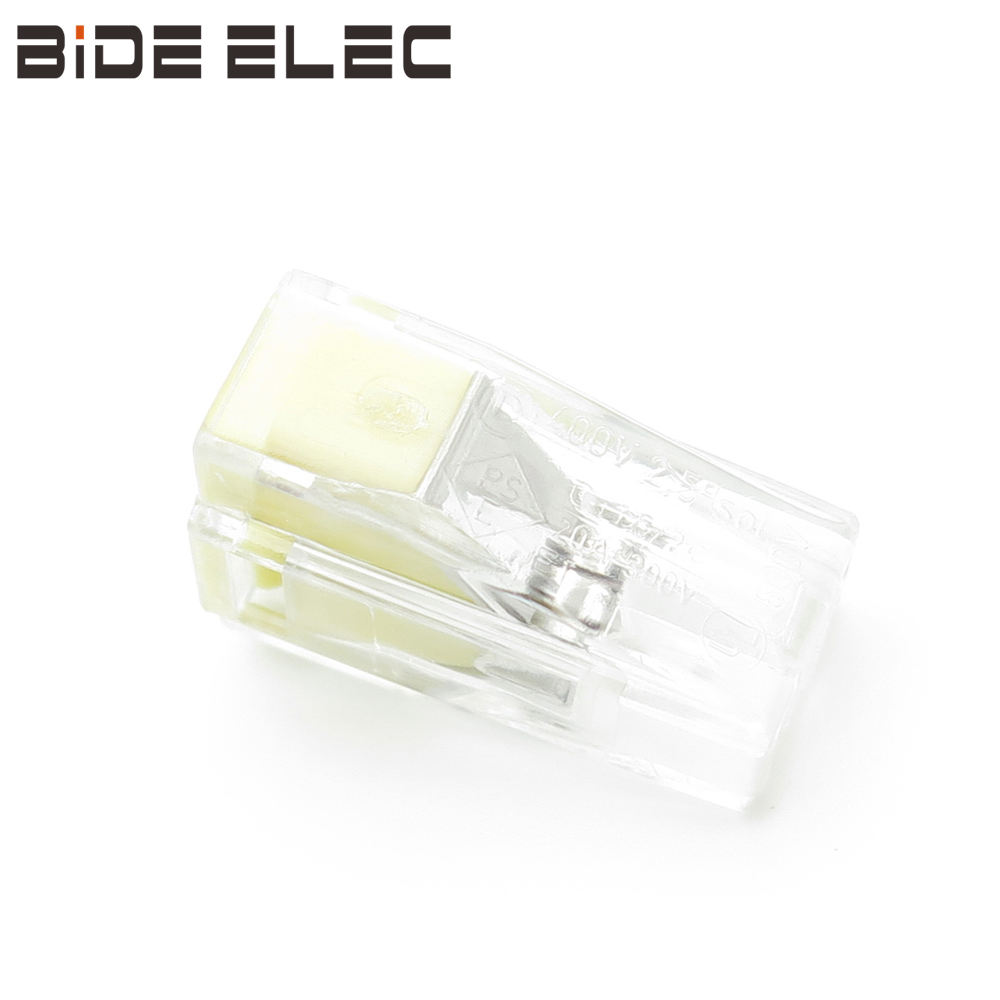

WAGO 773-102 Installation Terminal Blocks And Connector For Junction Boxes

Market Price: 0.17

Wholesale Price:$ 0.10

WAGO 773-102 is wire connector for junction boxes, named installation terminals block and connectors, which can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;
WAGO 773-102 connector has two interworking holes, which can connect single strand / multi hook stranded wire 0.75-2.5mm² ;, replacing the traditional chicken claw wiring, tinning and electric tape technology, improving the beauty and wiring efficiency, and increasing the safety ;
WAGO 773-102 terminal has its own electricity measuring hole. After wiring, you can use the electric measuring pen to check whether the wiring is safe or not. If there is something wrong, you can use the ultra simple operation (fix the terminal, rotate the wire left and right, pull it out) ;
WAGO 773-102 can work normally in 85°C environment, and the maximum temperature can reach 105°C；
WAGO 773 series connectors , including 773-102, 773-104, 773-106, 773-108, 773-602, 773-604, 773-606 and 773-173, which are produced and packaged by Tianjin Wanke Electronics Co., Ltd., a wholly-owned Wago enterprise in China, and sold all over the world ;
WAGO 773 series products have passed almost global certification requirements, including UL, CCA, CSA, ENEC, ABS, DNV GL, LR, CE, CQC, etc. ;

点击购买

Technical parameters:
Rated voltage: 400V
Rated current: 24A
Rated power: 5KW
Applicable wire diameter: 2 * 0.75-2.5mm² single stranded hard wire
Stripping length: 12mm
Product size: 19.5 * 9.2 * 13.1mm

Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)

Product certification:
UL, VDE, PSE, ENEC, KEMA, CCA, CE, CQC, etc.

For more details, please click 773-102
