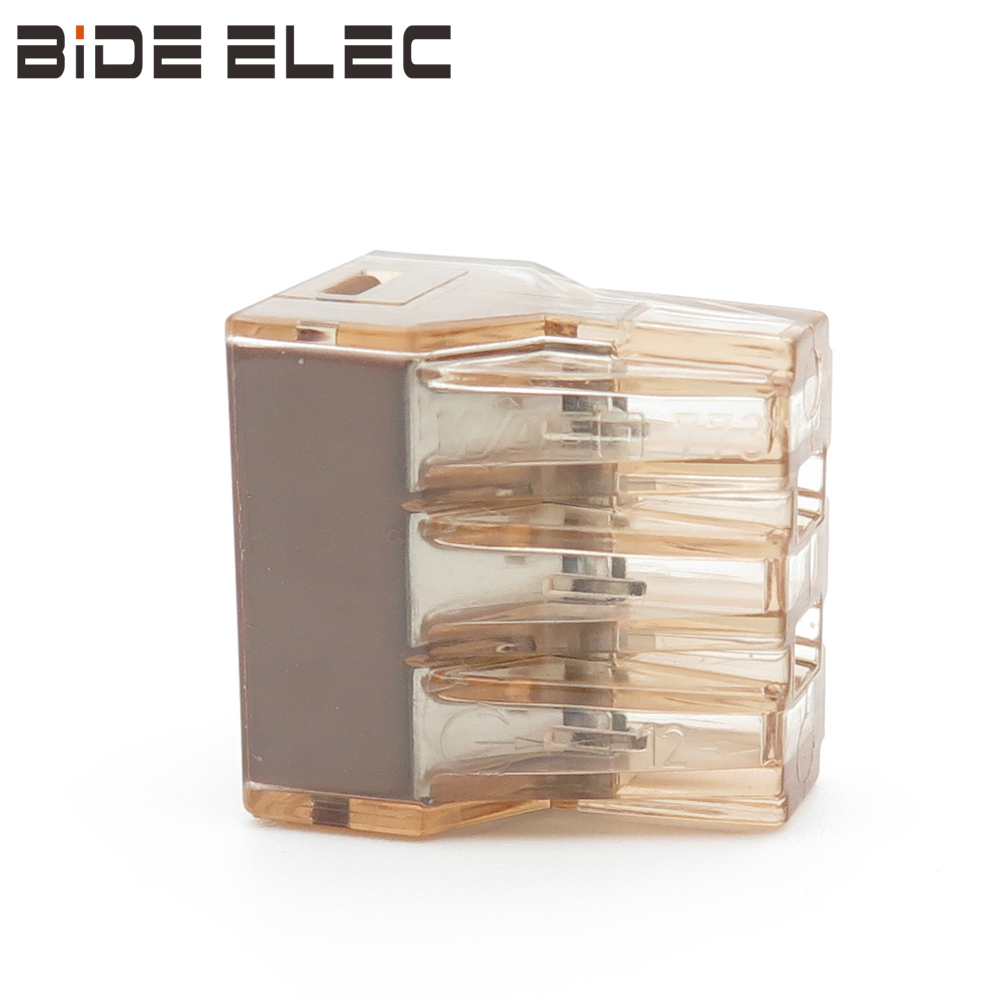

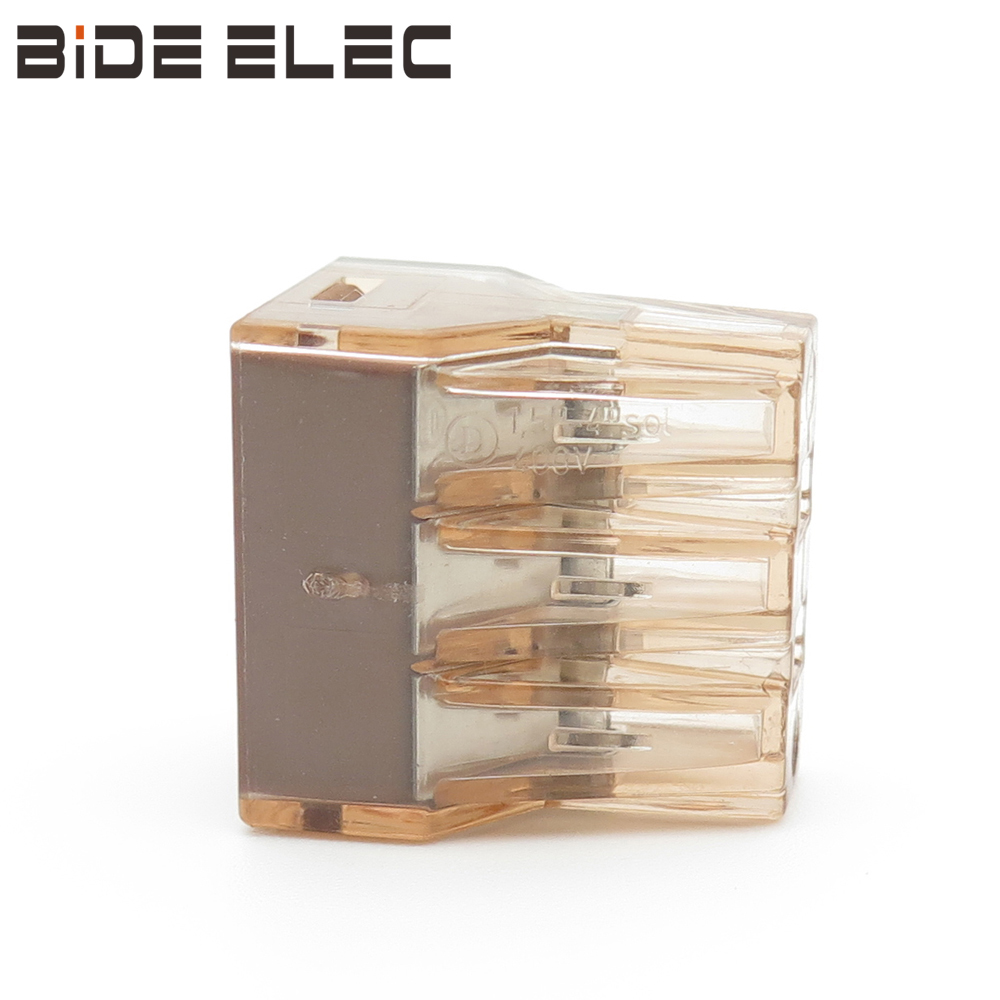

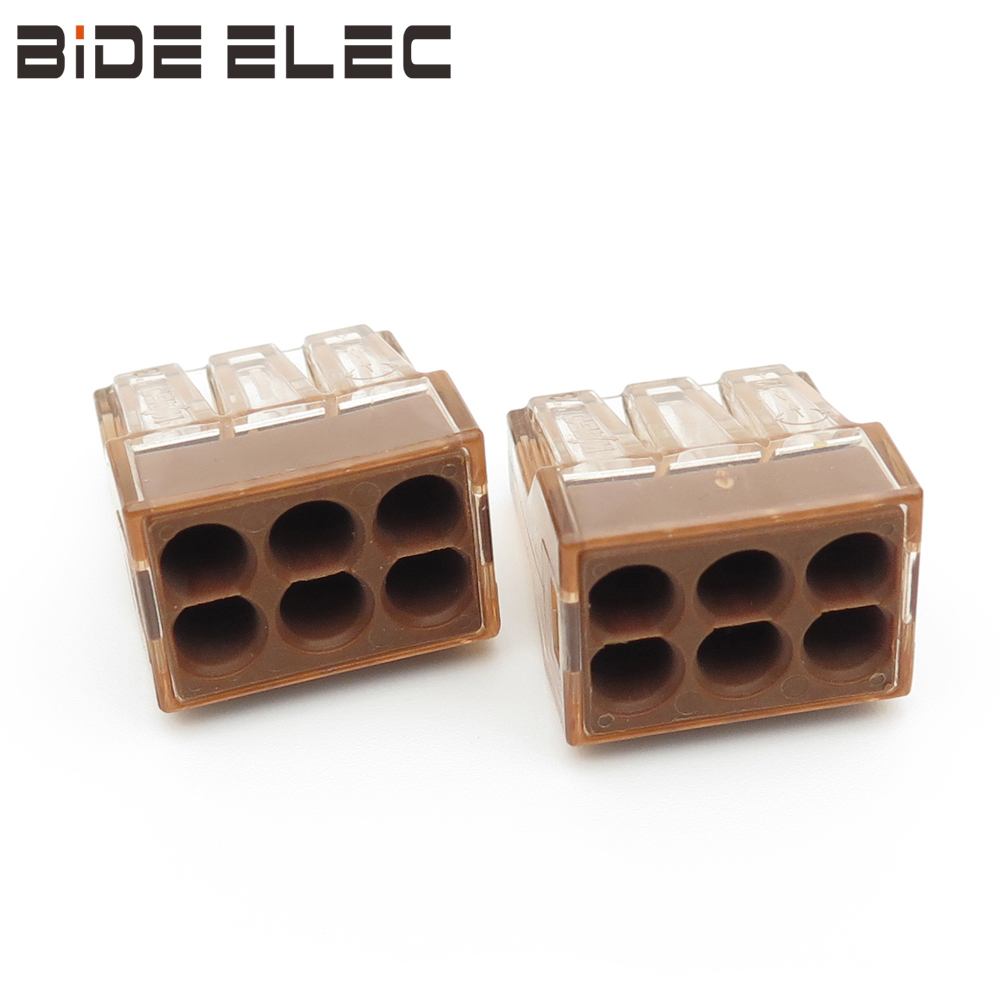

WAGO 773-606 Installation Terminal Blocks And Connector For Junction Boxes Max 4.0mm2
Market Price: 0.23
Wholesale Price:$ 0.19
- WAGO 773-606 is wire connector for junction boxes, named is installation terminals block and connectors, which can be described as wire terminals and connectors for electrical installation, 50 pieces / box ;

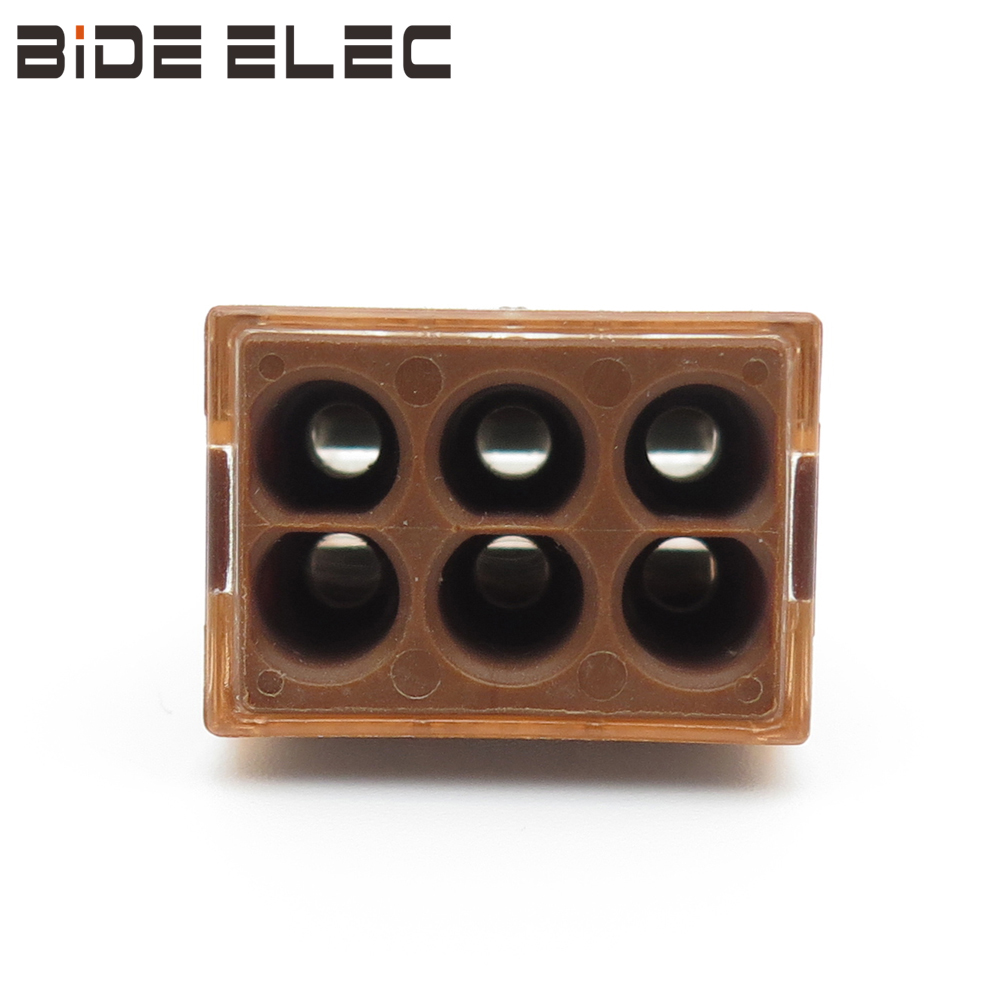

WAGO 773-606 connector has 6 interworking holes, which can connect 1.5-4.0mm2 single strand / multi hook stranded wires, replacing the traditional chicken claw wiring, tinning and electric tape technology, improving the beauty and wiring efficiency, and increasing the safety ;
WAGO 773-606 connectors is simple, convenient and reliable ;
WAGO 773-606 terminal has its own electricity measuring hole. After wiring, you can use the electric measuring pen to check whether the wiring is safe. If there is something wrong, you can use the ultra simple operation (fix the terminal, rotate the wire left and right and pull it out); < br / > if there is any problem, you can use the electric measuring pen to check whether the wiring is safe ;
WAGO 773-606 connectors can work normally in 85°C environment, and the maximum temperature can reach 105°C;
WAGO 773 series connectors including 773-102, 773-104, 773-106, 773-108, 773-602, 773-604, 773-606 and 773-173, which are produced and packaged by WAGO (Tianjin) , a wholly-owned Wago enterprise in China, and sold all over the world ;
WAGO 773 series products have passed almost global certification requirements, including UL, CCA, CSA, ENEC, ABS, DNV GL, LR, CE, CQC, etc.
Technical parameters:
Rated voltage: 400V
Rated current: 32A
Rated power: 7KW
Applicable wire diameter: 6 * 1.5-4mm2 single stranded hard wire
Stripping length: 12mm
Product size: 19.5 * 18.8 * 13.1mm
Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)
Product certification:
UL, VDE, PSE, ENEC, Kema, CCA, CE, CQC, etc.
For more details, please click 773-606
