WAGO 222-412 Installation Terminal Block And Splicing Connector

Market Price: 0.42

Wholesale Price:$ 0.26

WAGO 222-412 is classic compact splicing connectors, which can be described as wire terminals and connectors for electrical installation, 50 pieces / box ;
WAGO 222-412 connector has two interworking holes, which can connect 0.08-2.5mm² single strand / multi hook stranded wire and 0.08-4mm² thin multi strand wire, which can easily solve the connection trouble and unsafe hidden danger of different wire diameters and different types of wires, improve the wiring efficiency and increase the safety ;

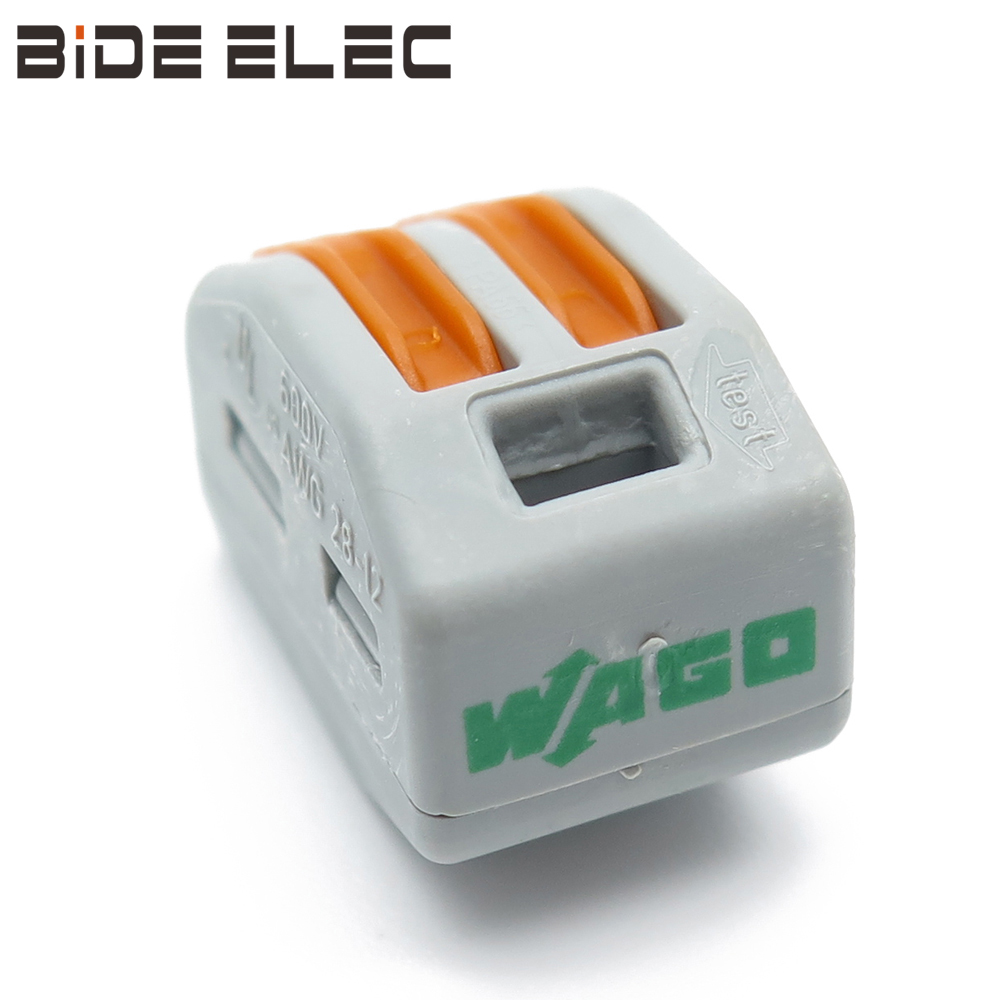

WAGO 222-412 terminal has its own electric measuring hole. After wiring, the electric measuring pen can be used to check whether the wiring is safe. If there is something wrong, the wiring can be repeated with ultra simple operation (open the orange handle, pull out insert the wire, press the orange handle) ;
WAGO 221-412 can work normally in 85°C environment, and the maximum temperature can reach 105°C；
WAGO 222 series connectors are three models, 222-412, 222-413 and 222-415 ;
WAGO 222 series products have passed almost global certification requirements, including UL, VDE, PSE, ENEC, ABS, DNV GL, LR, CE, CQC, etc. ;

点击购买

Technical parameters:
Rated voltage: 450V
Rated current: 32A
Rated power: 7KW
Applicable wire diameter: 0.08-2.5mm2 single multi strand hard wire; 0.08-4mm2 multi strand thin flexible wire
Stripping length: 9-10mm
Product size: 20.5 * 12.4 * 14.5mm

Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)

Product certification:
UL, VDE, PSE, CE, CQC, etc.
