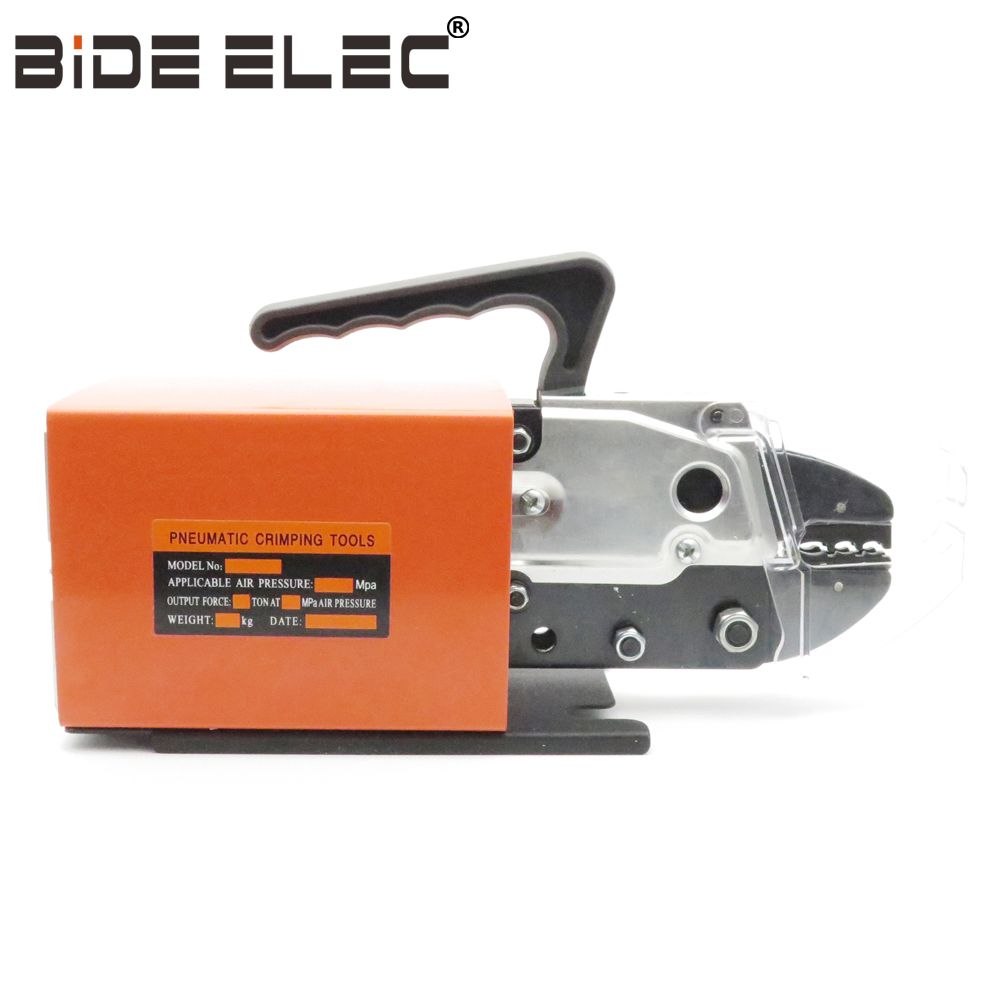

AM-10 Pneumatic Multi-Functional Terminal Crimper
Market Price: 140
Wholesale Price:$ 127.00
- Pneumatic cold pressing terminal crimping machine, also known as pneumatic terminal crimping clamp or pneumatic terminal crimping tool, is a tool that provides power (without plug-in) by connecting the input air energy of air compressor, which solves the problems of manual crimping tools such as tedious, laborious and low efficiency ;
Pneumatic terminal crimping tools are mainly used to crimp cold pressed terminals, such as insulated terminals, bare terminals, European tubular terminals, plug spring terminals, flag terminals, nipple crimping caps, etc., which have the characteristics of high crimping efficiency, labor-saving operation, safety and convenience ;
According to the different types of pressing connection, Pneumatic terminal crimping machine can be divided into special-purpose type and multi-functional type; according to the different operation modes, it can be divided into handheld type and desktop type ;
In fact, through the design of different types of crimping machine, the feasibility of different types of terminals can be greatly increased ;
AM-10 shell of the pneumatic terminal crimping machine is made of plastic sprayed iron, with its own fixed mounting base, which can be fixed on the desktop for terminal crimping, which improves the safety, and is widely used in wiring harness processing, complete set of power distribution cabinet processing, etc. ;

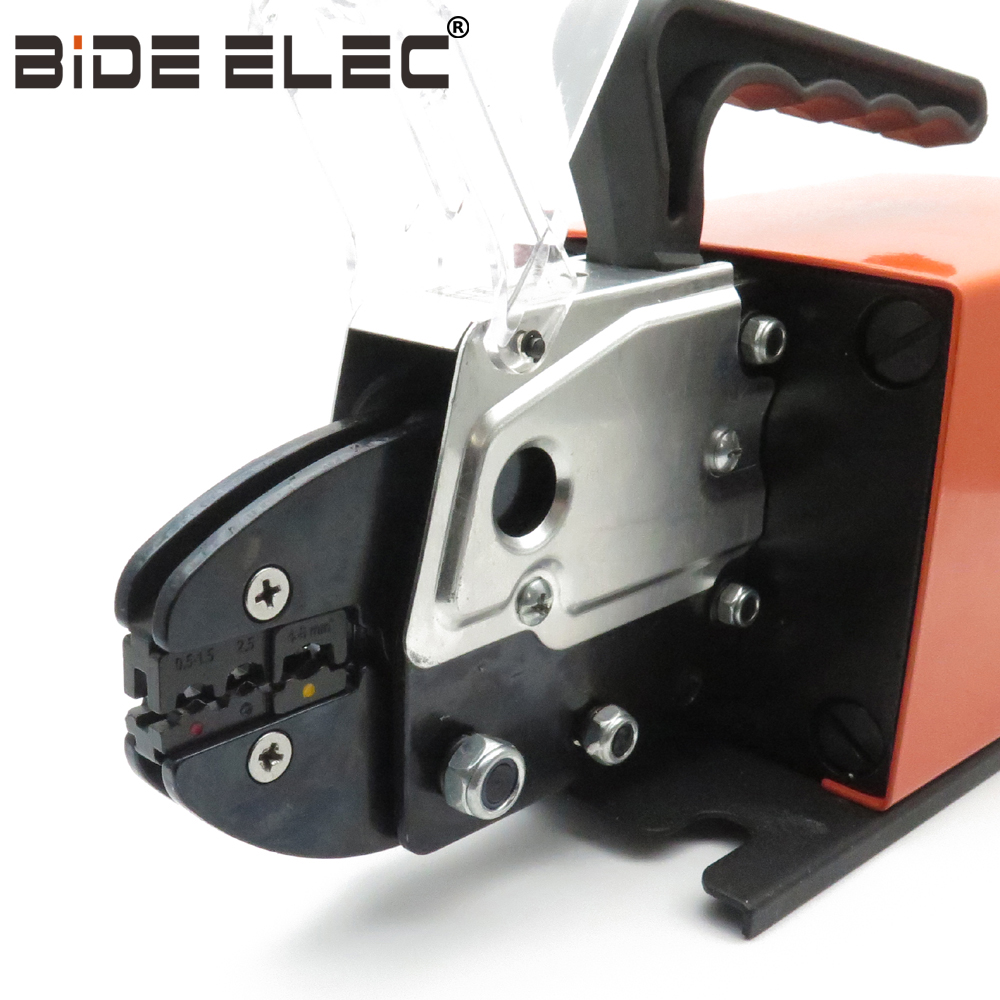

There are more than 30 kinds of molds available for Pneumatic crimper AM-10, which is suitable for different types of terminals and sizes. It has high flexibility, stable and reliable quality and excellent crimping effect, and has been supported and recognized by customers at home and abroad ;
Air pressure range of AM-10 is 0.7-0.8 MPA, and the capacity of air compressor is more than 35L. If the value is too small, it will affect the pressure force and crimping effect ;
Product description
Name: multi function terminal pneumatic machine
Model: AM-10
Applicable objects: insulated terminal, non-insulated terminal, insulated and non-insulated terminal, flag terminal, non-insulated open plug-type terminal ,coaxial cable terminal, crimping cap, etc. ;
Function: used for crimping and fixing of various cold pressed terminals
Crimping range:
insulated terminals (0.5-6mm2)
non-insulated terminals (0.5-16mm2)
ferrule terminals (0.25-50mm2)
Flag type terminal (0.5-6mm2)
non-insulated open plug-type terminal (0.5-6mm2)
end-close terminal (0.5-6mm2)
Pressure: 13.5KN
Product size: 260 x 120 x 140 mm
Accessories included with the product: one foot valve, one pair of pliers, two air pipes and instruction manual
Product characteristics

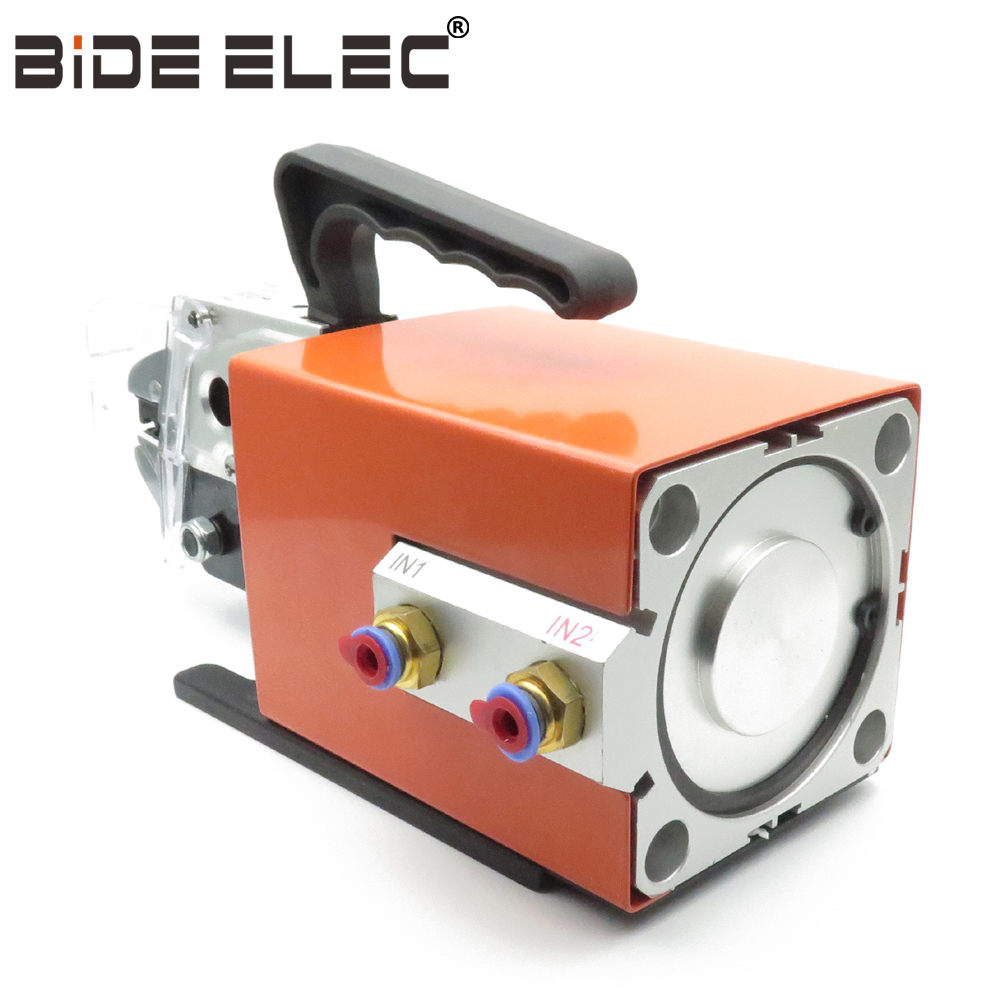

Driven by double acting standard cylinder, it has high working efficiency and high quality crimping effect
It is suitable for work with high crimping frequency
The interchangeability of the die is suitable for more types of terminal crimping
Instructions for use

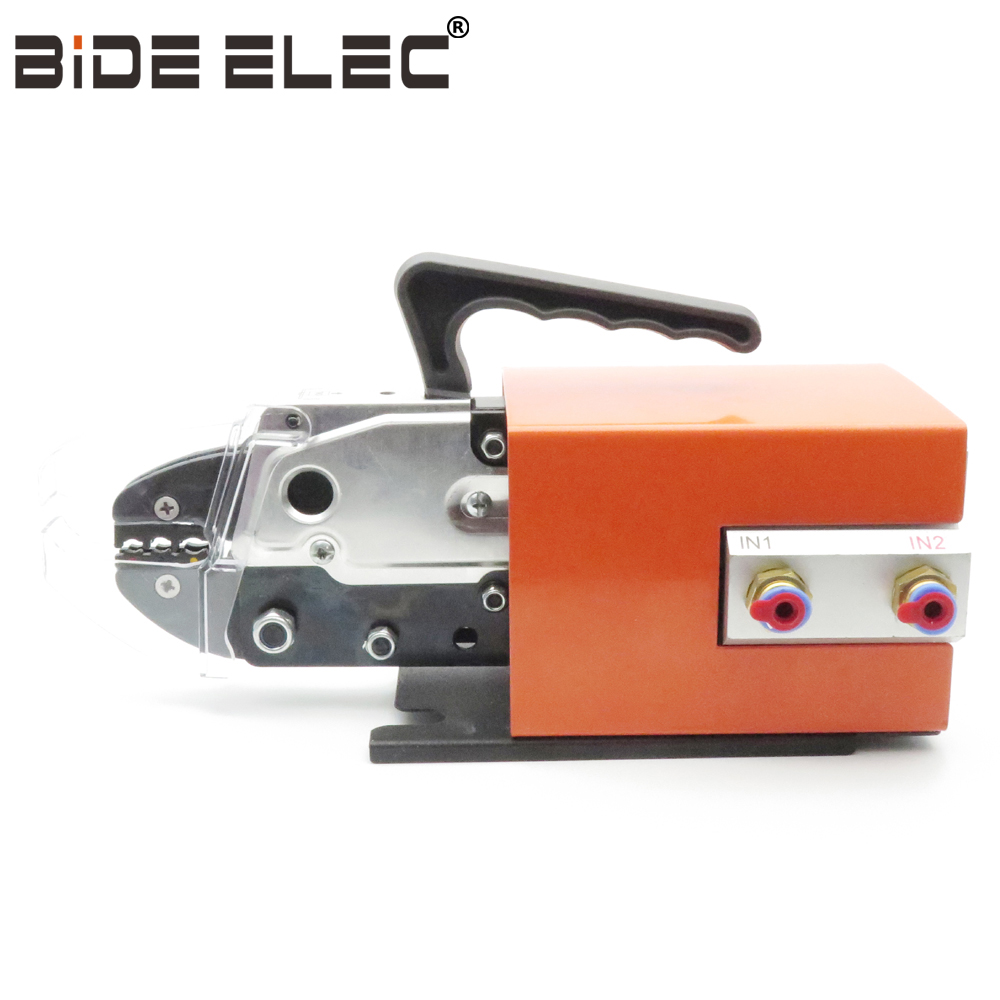

Connect the tool to the air compressor, put the terminal of the wire into the pressing interface of the corresponding mold, step on the foot to complete the crimping, and then release the foot to take out the terminal
Common problems of pneumatic crimping machine
1. The air pressure does not meet the standard. If the air pressure is too high or too low, the use effect of the crimping machine will be affected, and the operation shall be carried out in strict accordance with the instructions of the corresponding tools,if the air pressure is too high or too low, the use effect of the crimping machine will be affected ;
2. Shape deformation after pressing. The wire does not match the terminal, the terminal tube is empty after inserting the wire, and it is extruded or cannot be pressed after crimping , the wire is inserted into the terminal tube
3. The crimping efficiency is not as expected. Pneumatic crimper is a semi-automatic tool, its efficiency is affected by many convenient factors, such as crimping terminal type, terminal size, unskilled and so on ;
