PFC-25 Pneumatic Handheld Ferrule Terminal Crimper

Market Price: 110

Wholesale Price:$ 76.00

Pneumatic terminal crimper, also known as pneumatic terminal machine or pneumatic terminal crimping tool, is a kind of tool to provide power (without plug-in) by connecting the input air energy of air compressor, which solves the problems of manual crimping tools such as tedious, laborious and low efficiency
Pneumatic terminal crimping tools are mainly used to crimp cold pressed terminals, such as insulated terminals, bare terminals, European tubular terminals, plug spring terminals, flag terminals, nipple crimping caps, etc., which have the characteristics of high crimping efficiency, labor-saving operation, safety and convenience ;
According to the different types of pressing connection, pneumatic terminal crimping machine can be divided into special-purpose type and multi-functional type; according to the different operation modes, it can be divided into hand-held type and desktop type ;
Hand-held pneumatic terminal crimping clamp PFC-25 is specially used for crimping ferrule terminals. Its crimping range is 0.14-2.5mm2, and the shape after crimping is trapezoid. If there are other requirements for the shape after crimping, please select quadrangle or hexagon ;

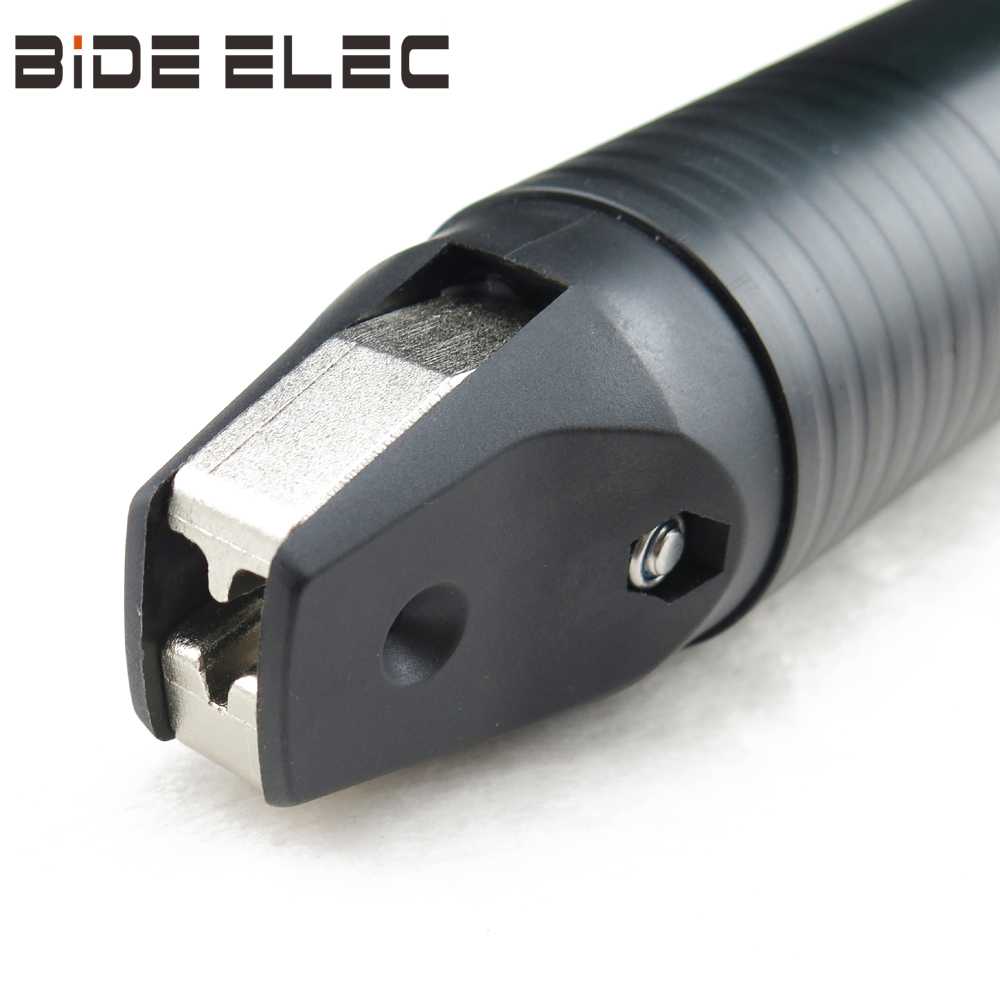

Through scientific and reasonable design, hand-held pneumatic crimping tool PFC-25 can be inserted into the tubular terminals at the left, right and front of the crimping joint for crimping, which greatly improves the practicability and is widely used in the assembly line of terminals and the processing of complete sets of power distribution cabinet ;
PFC-25 has the same function as Phoenix zap-25, but with its high cost performance, stable and reliable quality, and efficient after-sales service, it is supported and recognized by the majority of customers ;
The applicable air pressure range of pneumatic wire presser PFC-25 is 0.4-0.6 MPA. If it exceeds the value, the service life of the tool will be reduced, and the internal parts will be damaged, so it is recommended to install a pressure regulating valve to adjust the air pressure ;
PFC pneumatic clamp series can be divided into hand-held type and desktop type, which can be selected according to the application environment ;

点击购买

Instructions for use
Connect the tool to the air compressor, put the terminal of the wire into any pressing interface of the tool, press the operating handle to complete the crimping, release the handle and take out the terminal

Product description
Name: pneumatic terminal crimping crimper
Model: PFC-25
Applicable object: Ferrule terminals
Applicable pressure: 0.4-0.6MPA
Crimping range: 0.14-0.25mm2
Product size: Ø 44 * 200 mm
Weight: 0.47 kg
Accessories: adaptor, instruction manual

Product characteristics
Small size, light weight and low operation requirements
The unique groove design is more humanized
Standard shape after pressing

Common problems of pneumatic crimping machine
1. The air pressure does not meet the standard. If the air pressure is too high or too low, the use effect of the crimping machine will be affected, and the operation shall be carried out in strict accordance with the instructions of the corresponding tools; < br / > if the air pressure is too high or too low, the use effect of the crimping machine will be affected ;
2. Shape deformation after pressing. The wire does not match the terminal, the terminal tube is empty after inserting the wire, and it is extruded or cannot be pressed after crimping ,the wire is inserted into the terminal tube ;
3. The crimping efficiency is not as expected. Pneumatic crimper is a semi-automatic tool, its efficiency is affected by many convenient factors, such as crimping terminal type, terminal size, unskilled and so on ;
