WAGO 224-101 Lighting Fixture Connector And Installation Terminal Blocks

Market Price: 0.2

Wholesale Price:$ 0.14

WAGO 224-101 is connector for lighting appliance , named is installation terminals block and connectors, which can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;

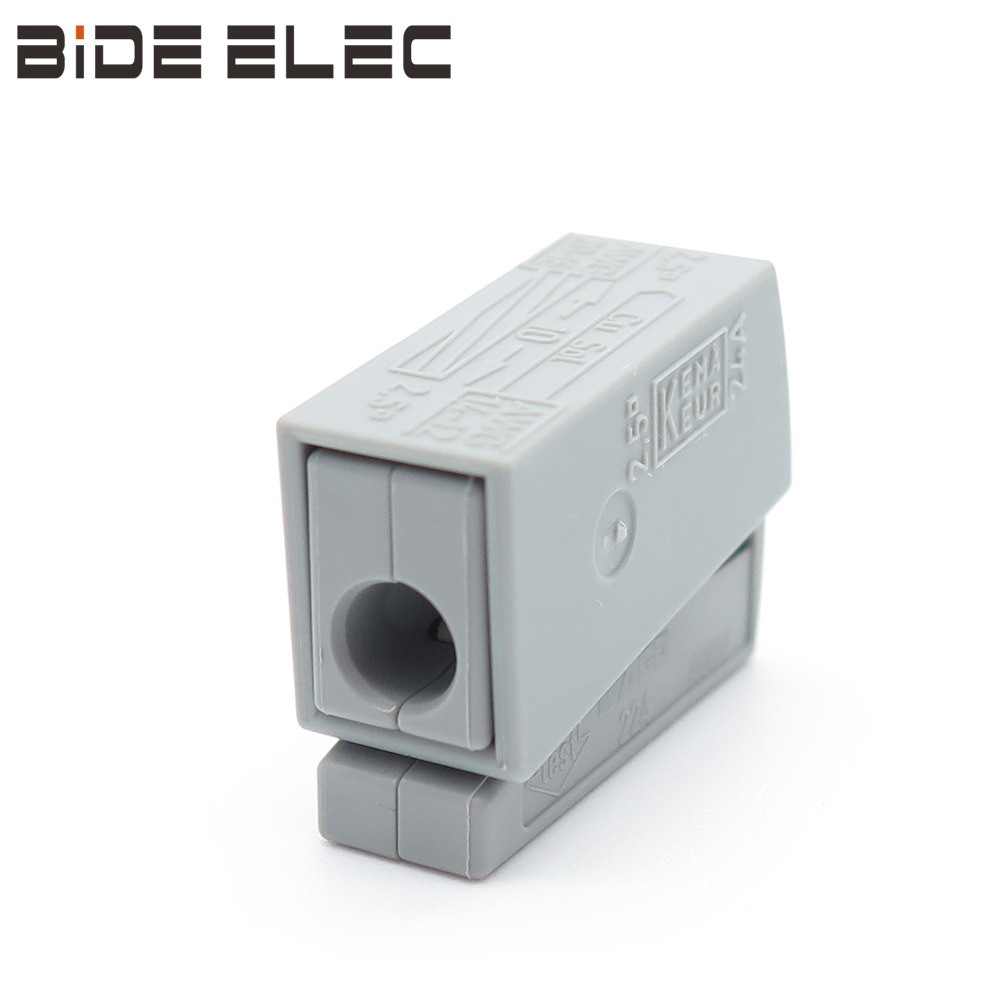

WAGO 224-101 connector ,gray face ,has a square hole in the front, which can connect any type of wire 0.08-2.5mm², and a round hole in the back, which can connect a single strand of hard wire 1-2.5mm², which can be more convenient and risk-free wiring when installing lighting appliances, and improve the wiring efficiency and safety ;

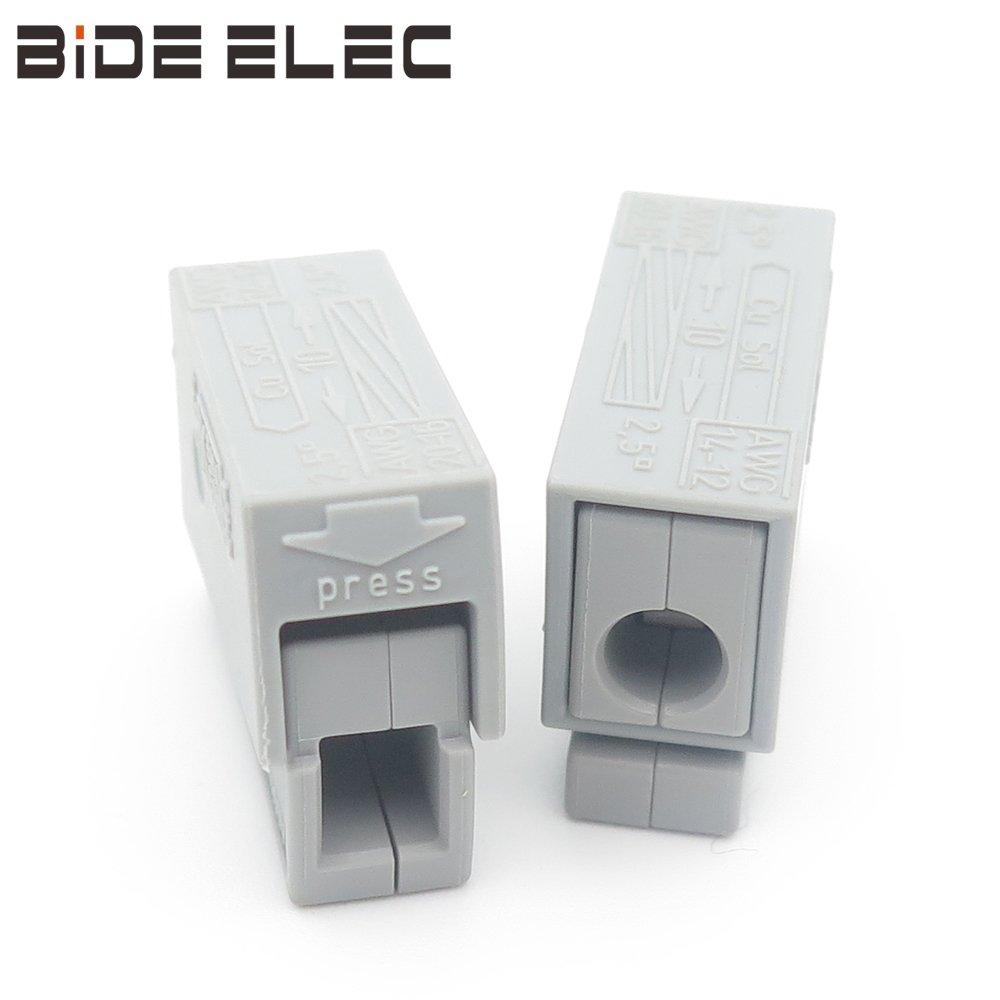

WAGO 224-101 terminal has its own electric measuring hole. After wiring, the electric measuring pen can be used to check whether the wiring is safe or not. If there is something wrong, it can be pulled out by ultra simple operation (round hole: fix the terminal, rotate the wire left and right, pull it out; square hole: push it down, pull it out) ;
WAGO 224-101 can work normally in 85°C environment, and the maximum temperature can reach 105°C；
WAGO 224 series connectors have five models, 224-101, 224-104, 224-112, 224-114 and 224-201 ;
WAGO 224 series products have passed the certification requirements covering almost the whole world, including UL, VDE, PSE, Kema, CCA, ABS, DNV GL, LR, CE, CQC, etc. ;

点击购买

Technical parameters:
Rated voltage: 400V
Rated current: 24A
Rated power: 5KW

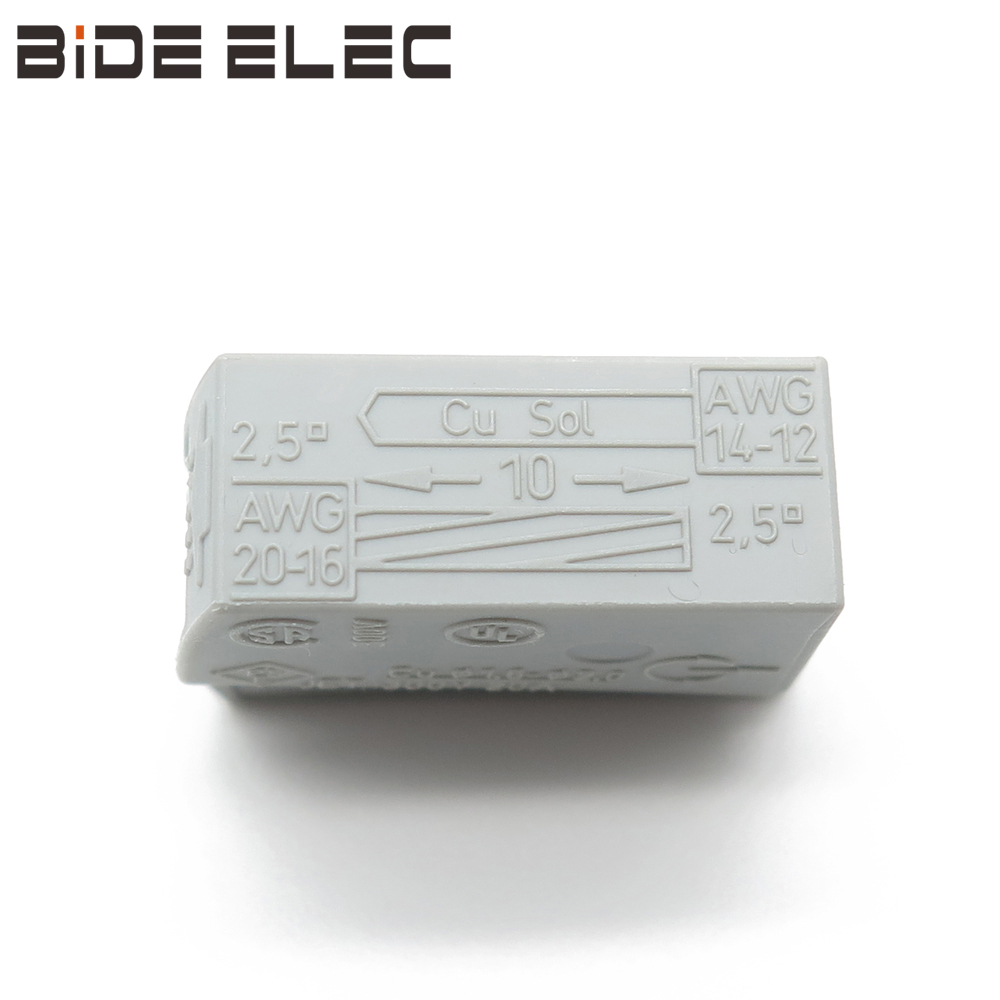

Applicable wire diameter:
power supply side (round) 1-2.5mm² single strand hard wire;
lamp side (square) 0.5-2.5mm² soft and hard wire
Stripping length: 9-11mm
Size: 8.0 * 5.5 * 20.4mm

Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)

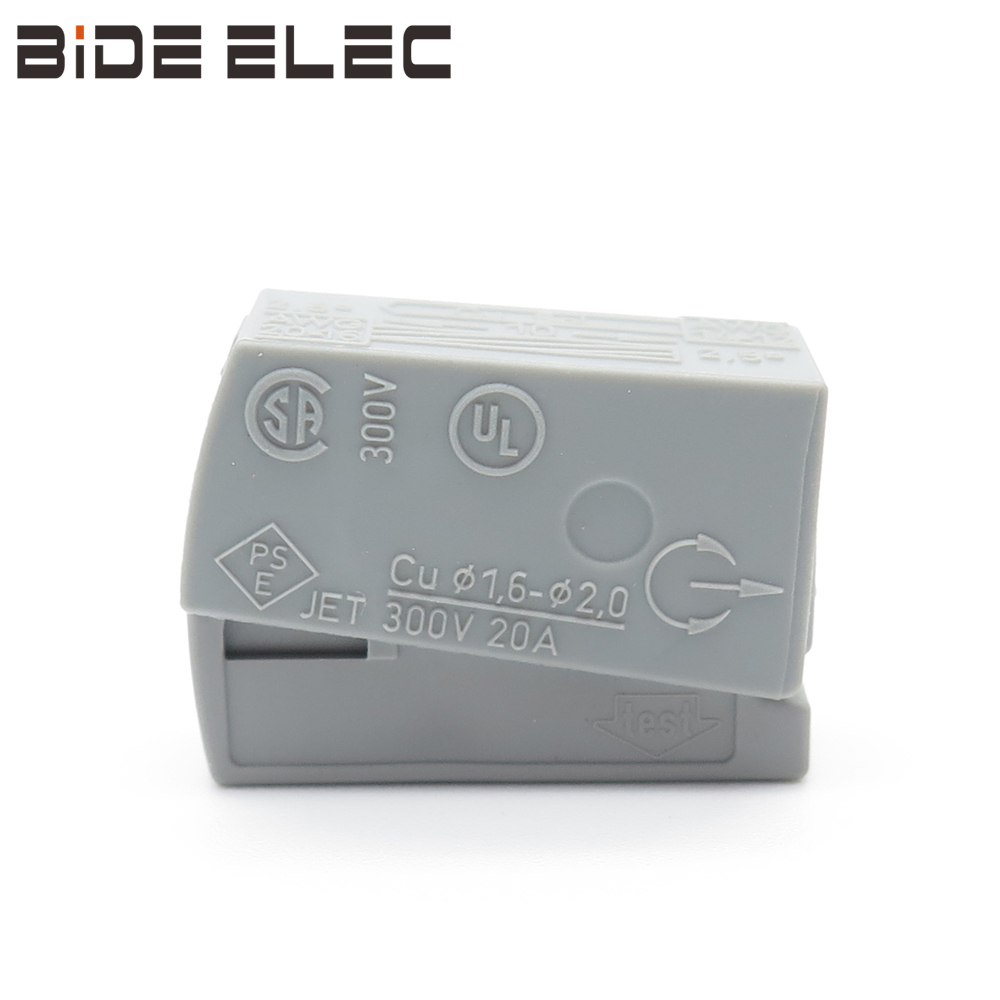

Product certification:
UL, VDE, PSE, ENEC, Kema, CCA, CE, CQC, etc.
