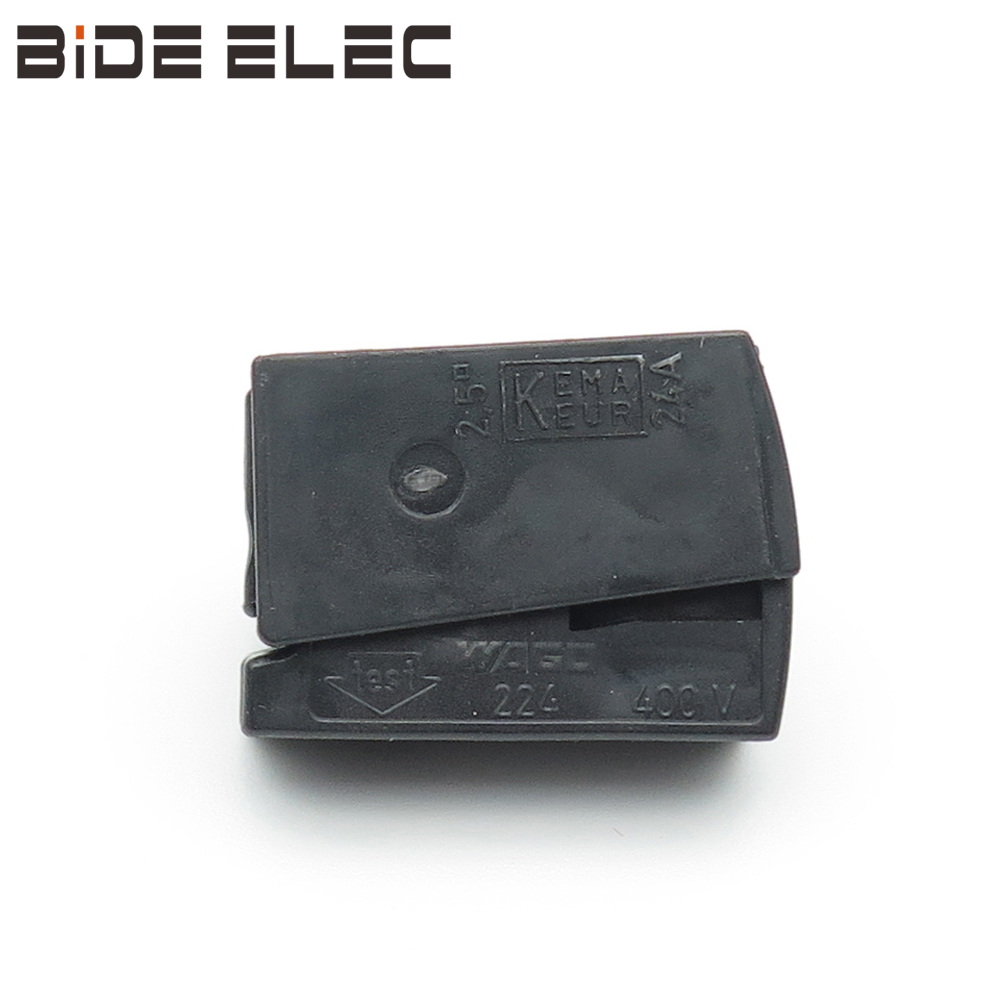

WAGO 224-114 Lighting Fixture Connector 1 In 2 Out Resistant High Temperature
Market Price: 0.3
Wholesale Price:$ 0.25
- WAGO 224-114 is connector for high temperature resistant lighting appliances, named is installation terminals block and connectors, which can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;

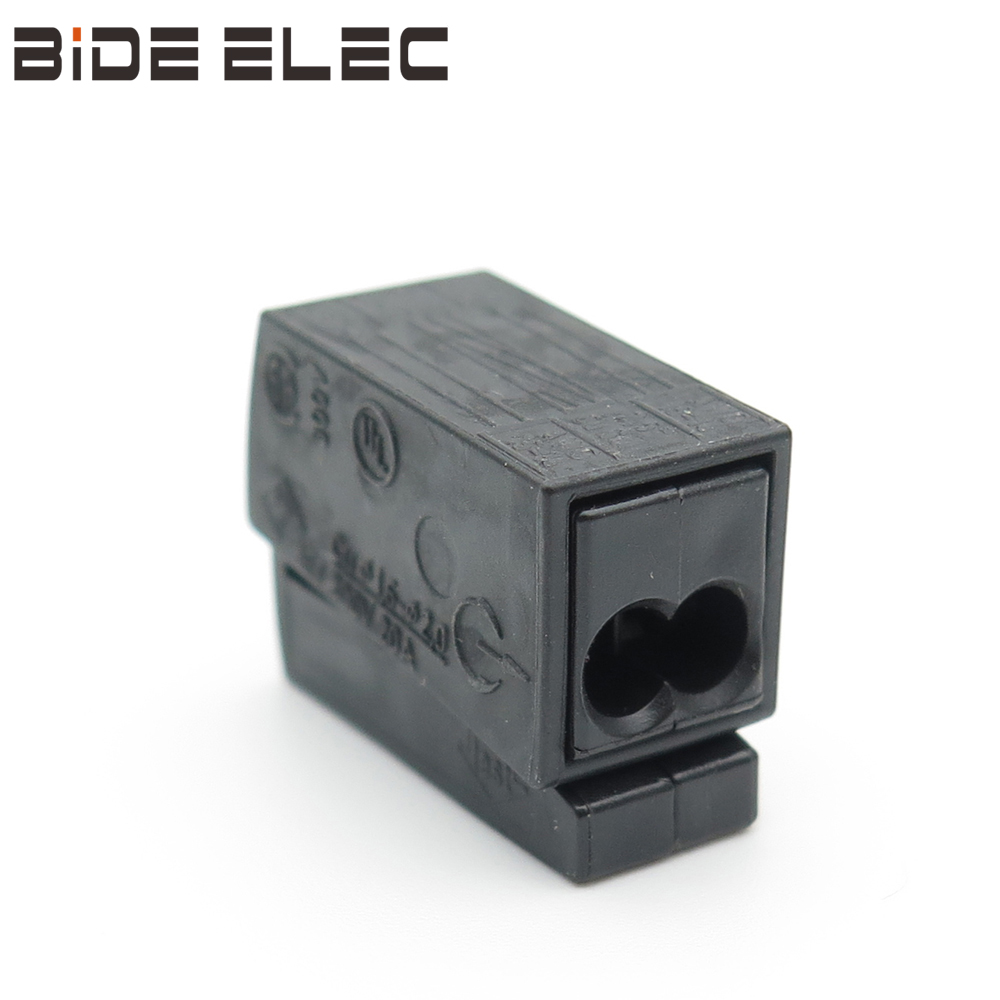

WAGO 224-114 linght fixture connector ,black face ,there is a square hole in the front of connector, which can connect any type of wire 0.08-2.5mm2, and there are two round holes in the back, which can connect single strand hard wire 1-2.5mm2 (used for branching, one switch can control more lamps). When installing lighting appliances, it can be more convenient and risk-free wiring, which improves the wiring efficiency and safety ;

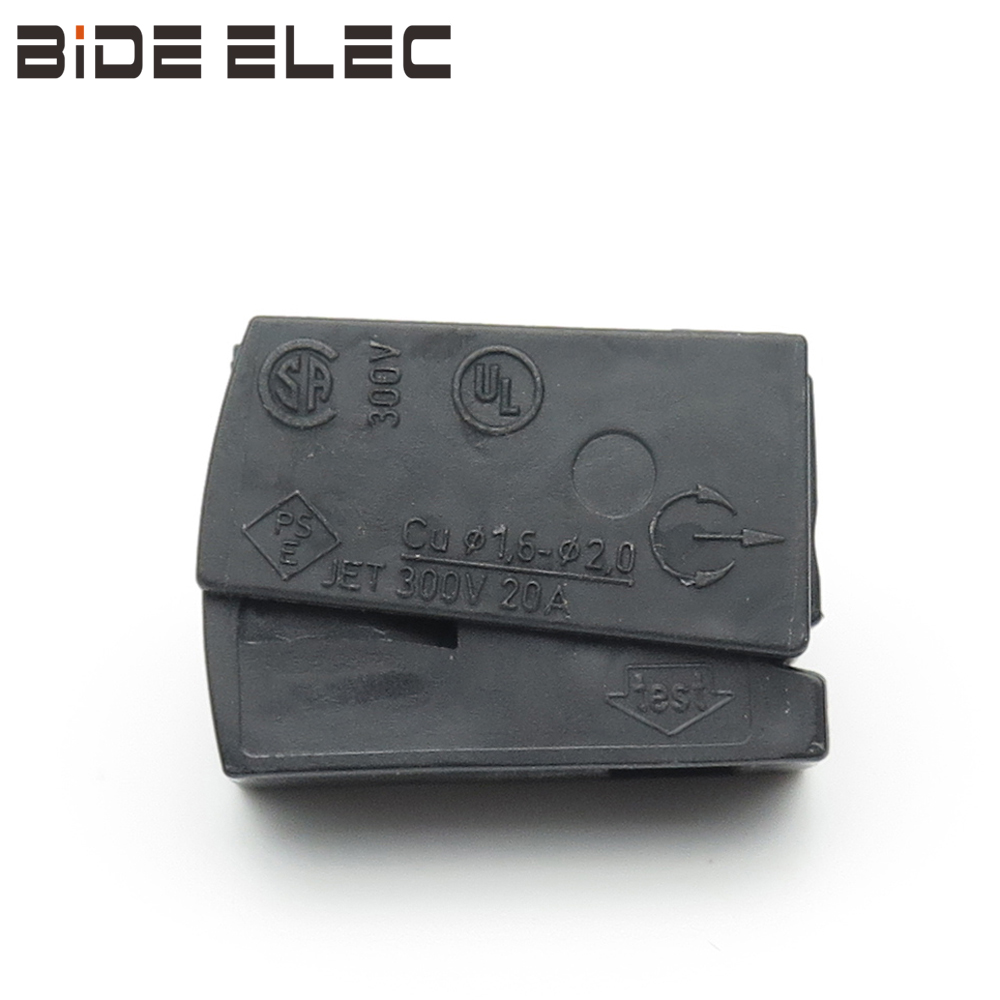

WAGO 224-114 terminal has its own electric measuring hole. After wiring, the electric measuring pen can be used to check whether the wiring is safe or not. If there is something wrong, it can be pulled out by ultra simple operation (round hole: fix the terminal, rotate the wire left and right, pull it out; square hole: push it down, pull it out) ;
WAGO 224-104 fixture connector can work normally in 85°C environment, and the maximum temperature can reach 120°C;
WAGO 224-114 and 224-112 diffrent is lies in whether they can withstand high temperature , wago224-114 can withstand high temperature ;
WAGO 224 series connectors have five models, 224-101, 224-104, 224-112, 224-114 and 224-201 ;
WAGO 224 series products have passed the certification requirements covering almost the whole world, including UL, VDE, PSE, Kema, CCA, ABS, DNV GL, LR, CE, CQC, etc. ;
Technical parameters:
Rated voltage: 400V
Rated current: 24A
Rated power: 5KW
Applicable wire diameter:
power supply side (round) 2 * 1-2.5mm2 single strand hard wire
lamp side (square) 0.5-2.5mm2 soft and hard wire
Stripping length: 9-11mm
Tolerance temperature: 120 ℃
Size : 9.5 * 5.5 * 20.5mm
Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)
Product certification:
UL, VDE, PSE, ENEC, Kema, CCA, CE, CQC, etc.
For more details, please click 224-114
