WAGO 221-412 Installation Terminal Bolcks And Compact Splicing Connector

Market Price: 0.32

Wholesale Price:$ 0.24

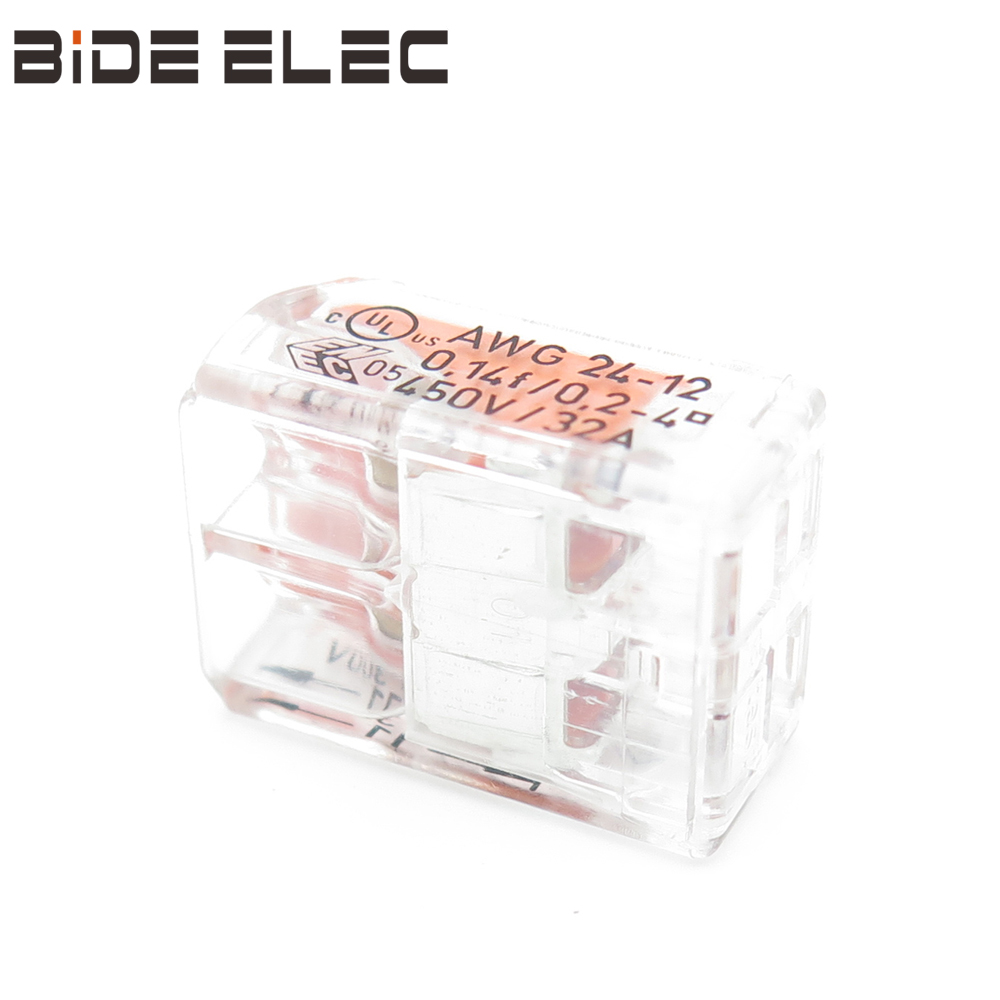

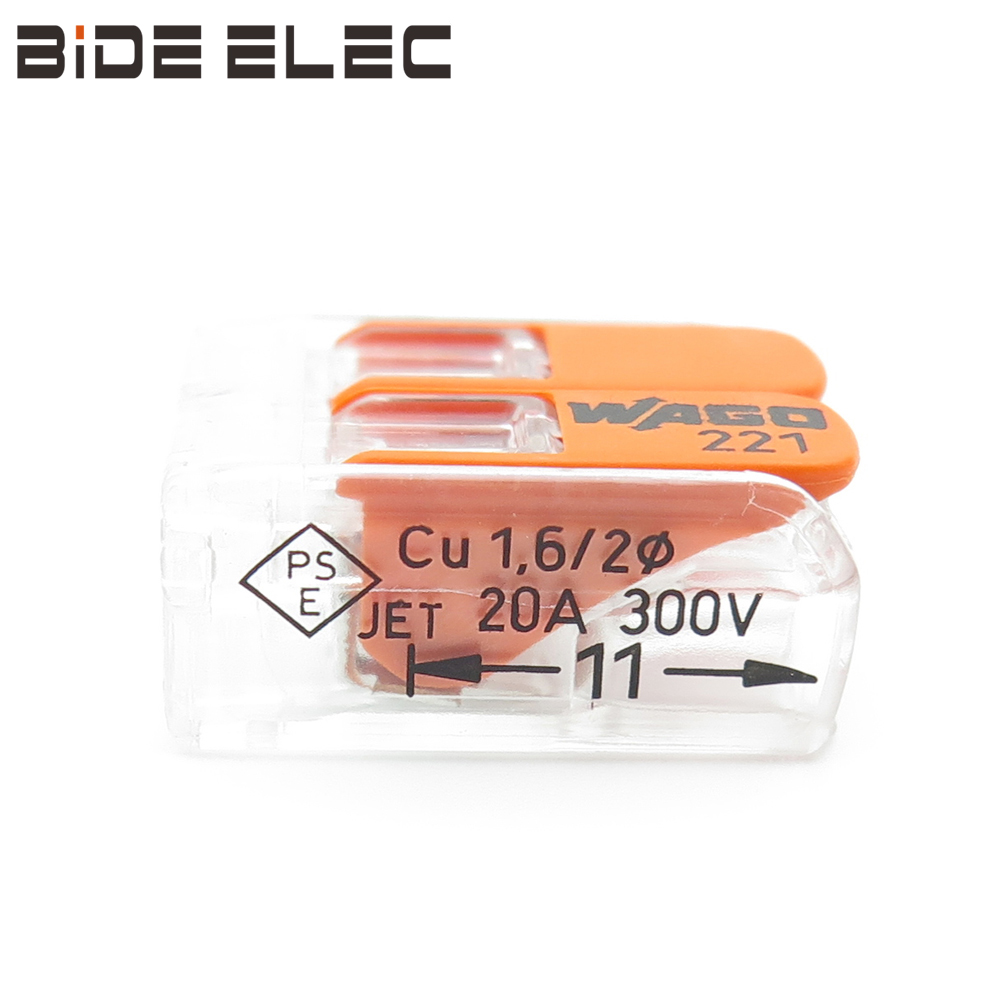

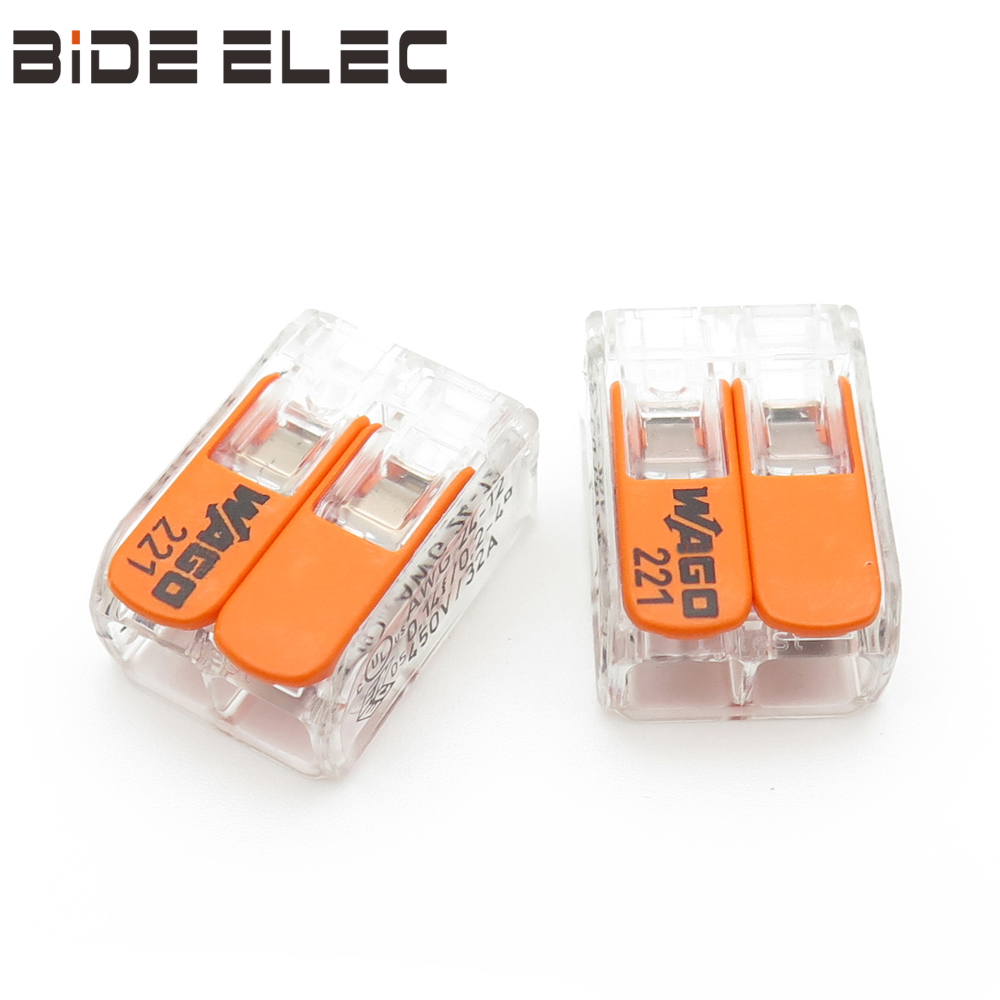

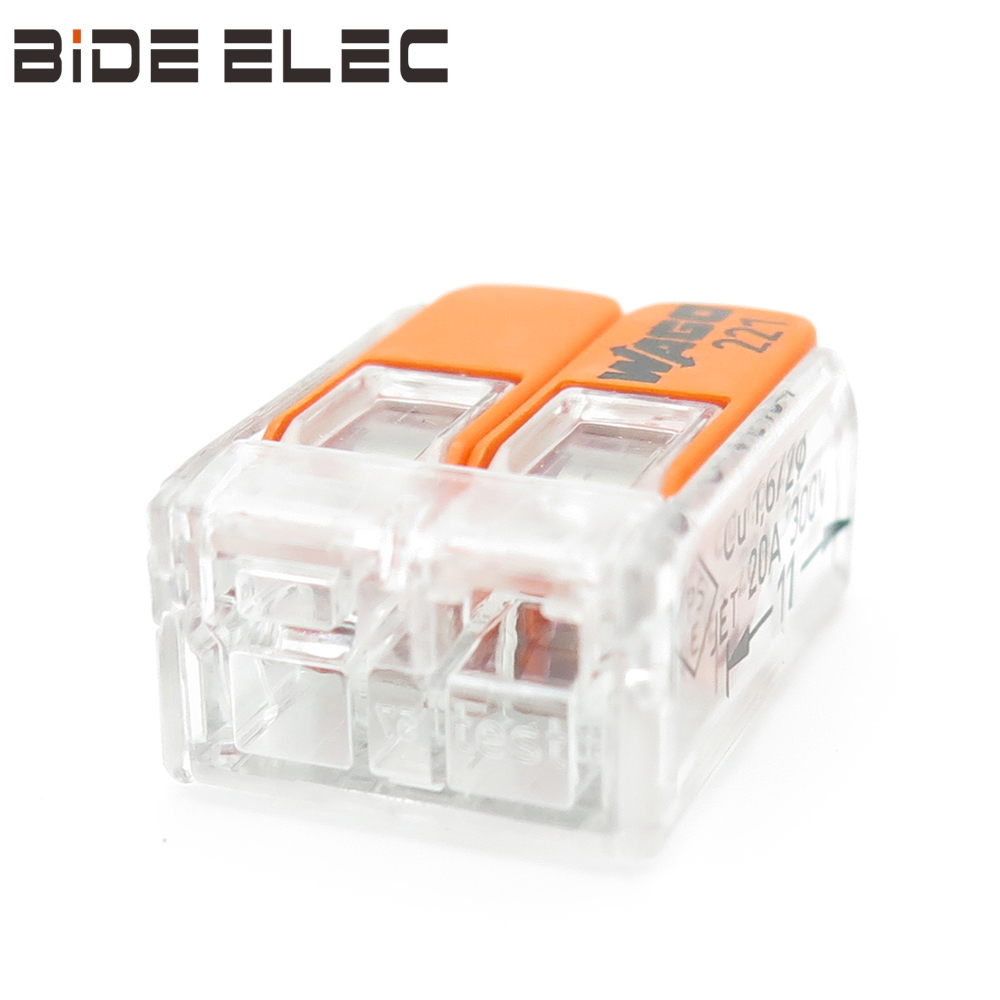

WAGO 221-412 is compact splicing connectors, which can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;
WAGO 221-412 connector has two interworking holes, which can connect 0.08-4.0mm² ,Apply for single / multi strand soft and hard wires at will, which can easily solve the connection troubles and unsafe hidden dangers of different wire diameters and different types of wires, improve the wiring efficiency and increase the safety ;
The design of the WAGO 221-412 connector is simple, convenient and reliable
After the connection is completed, check whether there is a clear connection with the inner terminal of the electric belt by pressing the orange handle ;
WAGO 221-412 can work normally in 85°C environment, and the maximum temperature can reach 105°C；
WAGO221 series connectors have six models, 221-412, 221-413, 221-415, 221-612, 221-613 and 221-615 ;
WAGO 221 series products have passed almost global certification requirements, including UL, VDE, PSE, Kema, CCA, ABS, DNV GL, LR, CE, CQC, etc. ;

点击购买

Technical parameters:
Rated voltage: 450V
Rated current: 32A
Rated power: 7KW
Applicable wire diameter: 0.14-4mm2 multi strand thin flexible wire; 0.2-4mm2 single / multi strand hard wire
Stripping length: 11mm
Product size: 18.6 * 13.1 * 8.3mm

Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)

Product Certification:
UL, VDE, PSE, CE, CQC, etc.

For more information, please click
