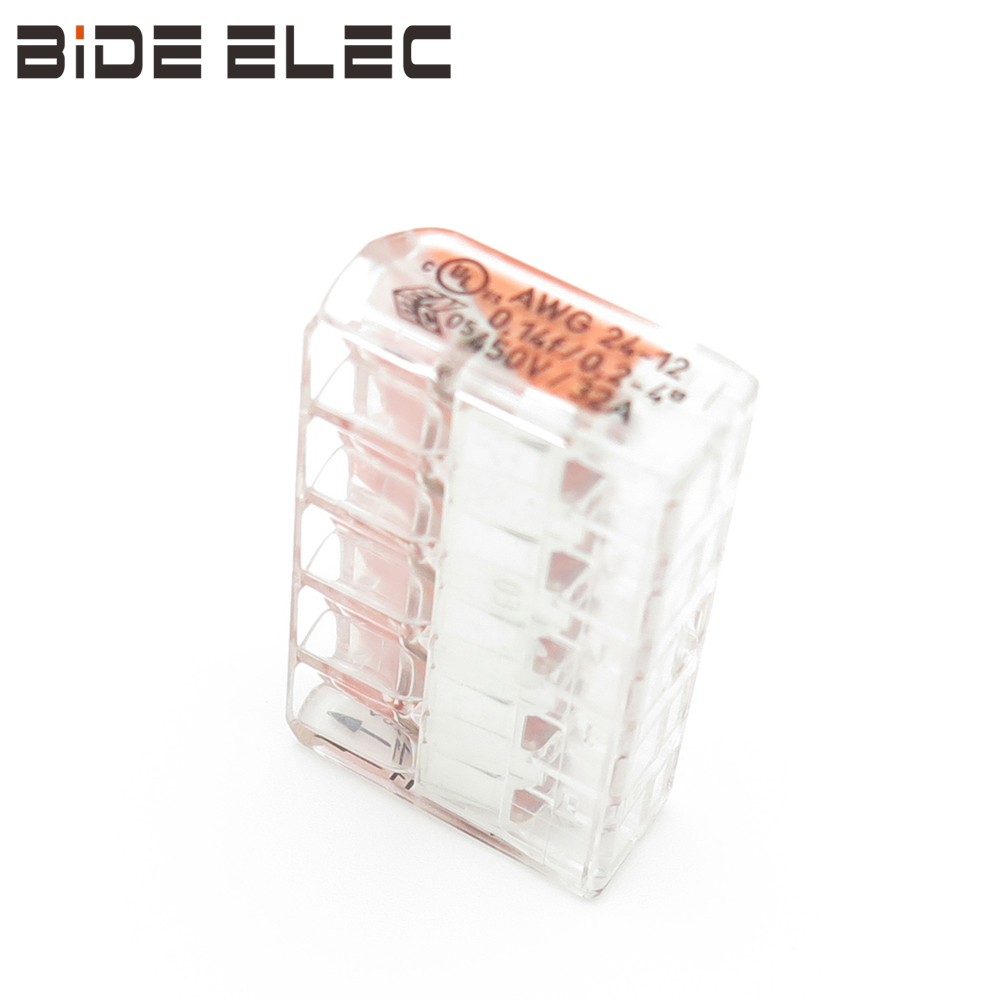

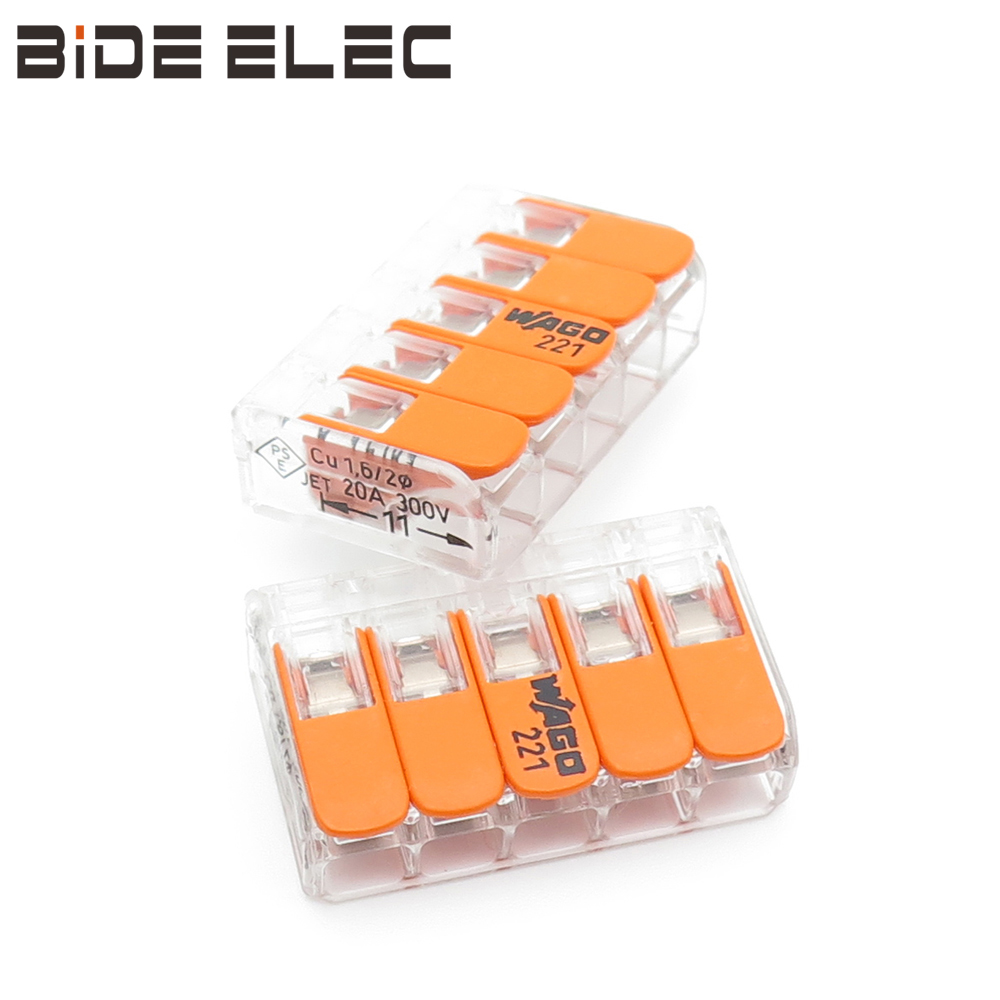

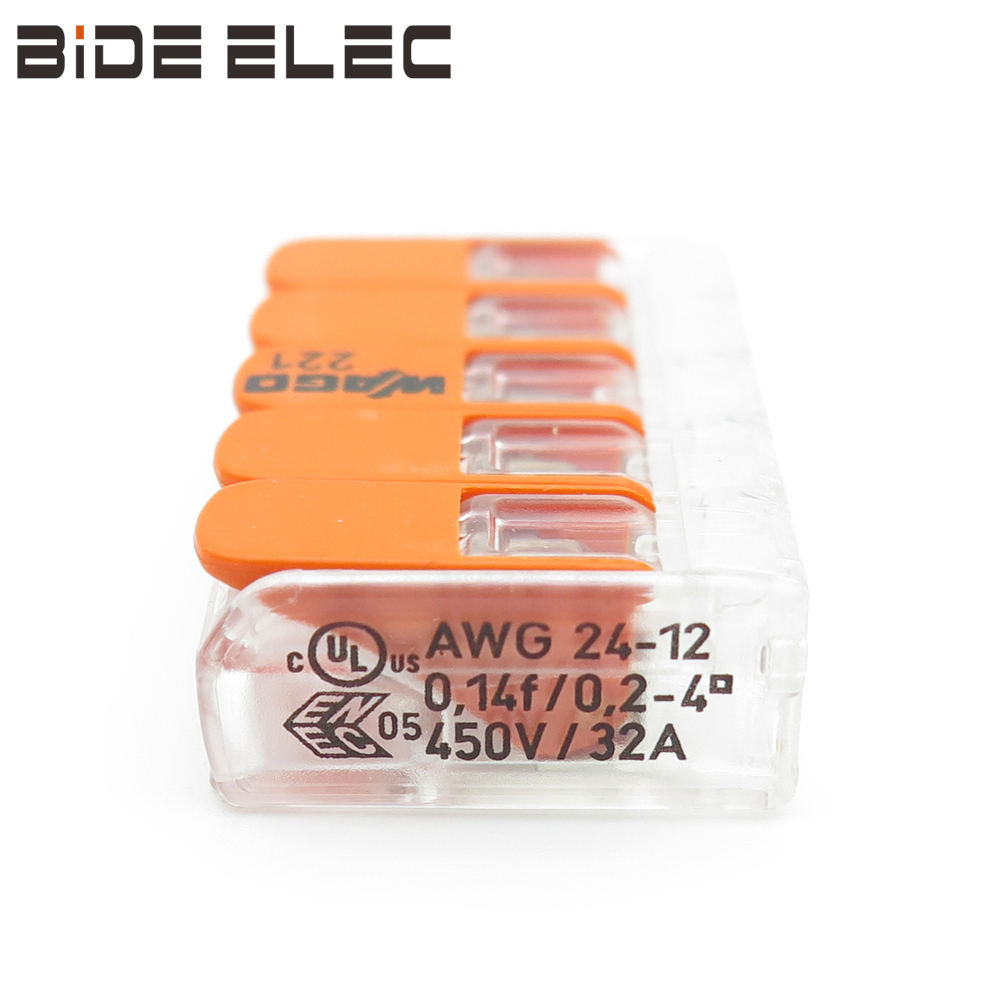

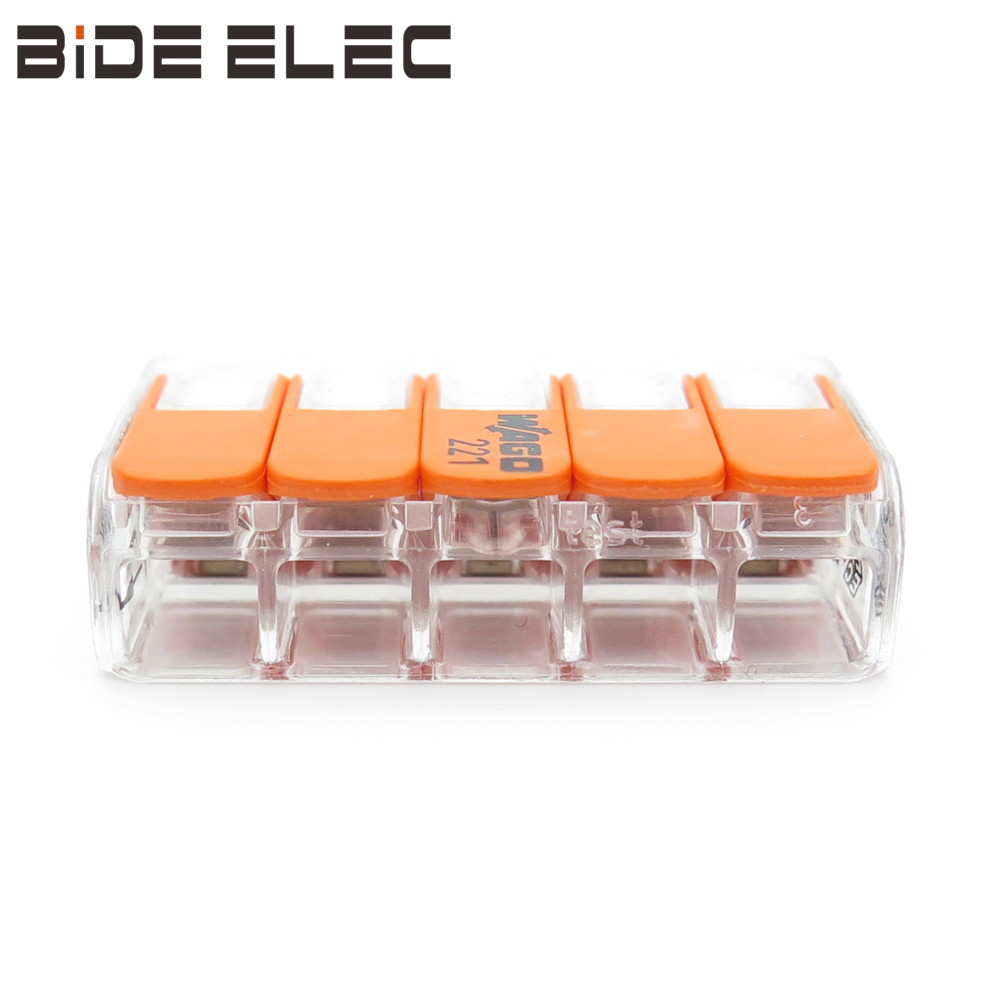

WAGO 221-415 Installation Terminal BLocks And Compact Splicing Connector
Market Price: 0.5
Wholesale Price:$ 0.44
- WAGO 221-415 is compact splicing & nbsp; connectors, which can be described as wire terminals and connectors for electrical installation, 25 pieces / box ;
WAGO 221-415 connector has five interworking holes, which can connect 0.08-4.0mm2 single / multi strand soft and hard wires at will, which can easily solve the connection troubles and unsafe hidden dangers of different wire diameters and different types of wires, improve the wiring efficiency and increase the safety ;
The design of WAGO 221-415 connector is simple, convenient and reliable ;
WAGO 221-415 terminal has a nylon 66 transparent shell, which makes the internal wiring of the terminal clear, and the terminal has a measuring hole. After wiring, you can use a measuring pen to check whether it has been safely connected. If there is something wrong, you can repeat the wiring with ultra simple operation (open the orange handle, pull out insert the wire, press the orange handle); if there is any problem, you can use the electric pen to check whether it has been safely connected;
WAGO 221-415 can work normally in 85°C environment, and the maximum temperature can reach 105°C;
WAGO 221 series connectors have six models, 221-412, 221-413, 221-415, 221-612, 221-613 and 221-615 ;
WAGO 221 series products have passed almost global certification requirements, including UL, VDE, PSE, Kema, CCA, ABS, DNV GL, LR, CE, CQC, etc.
Technical parameters:
Rated voltage: 450V
Rated current: 32A
Rated power: 7KW
Applicable wire diameter: 0.14-4mm2 multi strand thin flexible wire; 0.2-4mm2 single / multi strand hard wire
Stripping length: 11mm
Product size: 18.6 * 29.9 * 8.3mm
Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)
Product Certification:
UL, VDE, PSE, CE, CQC, etc.
