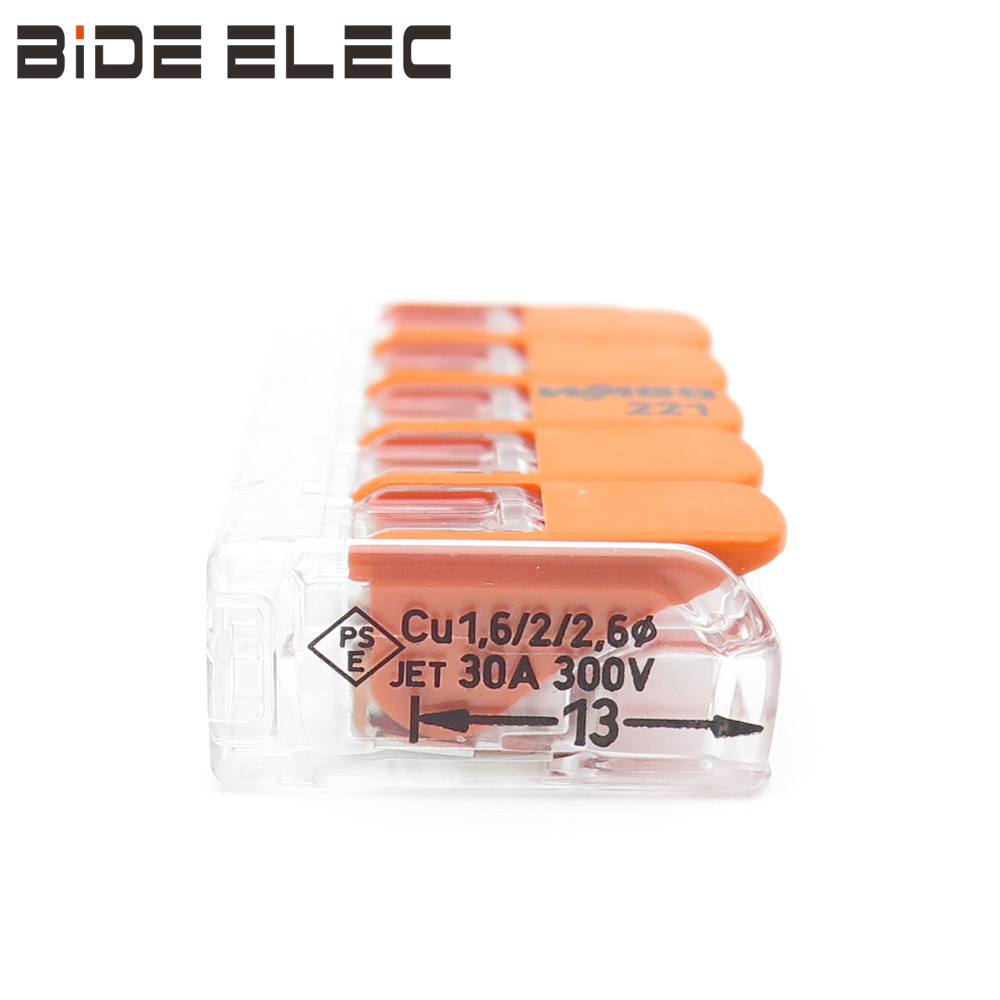

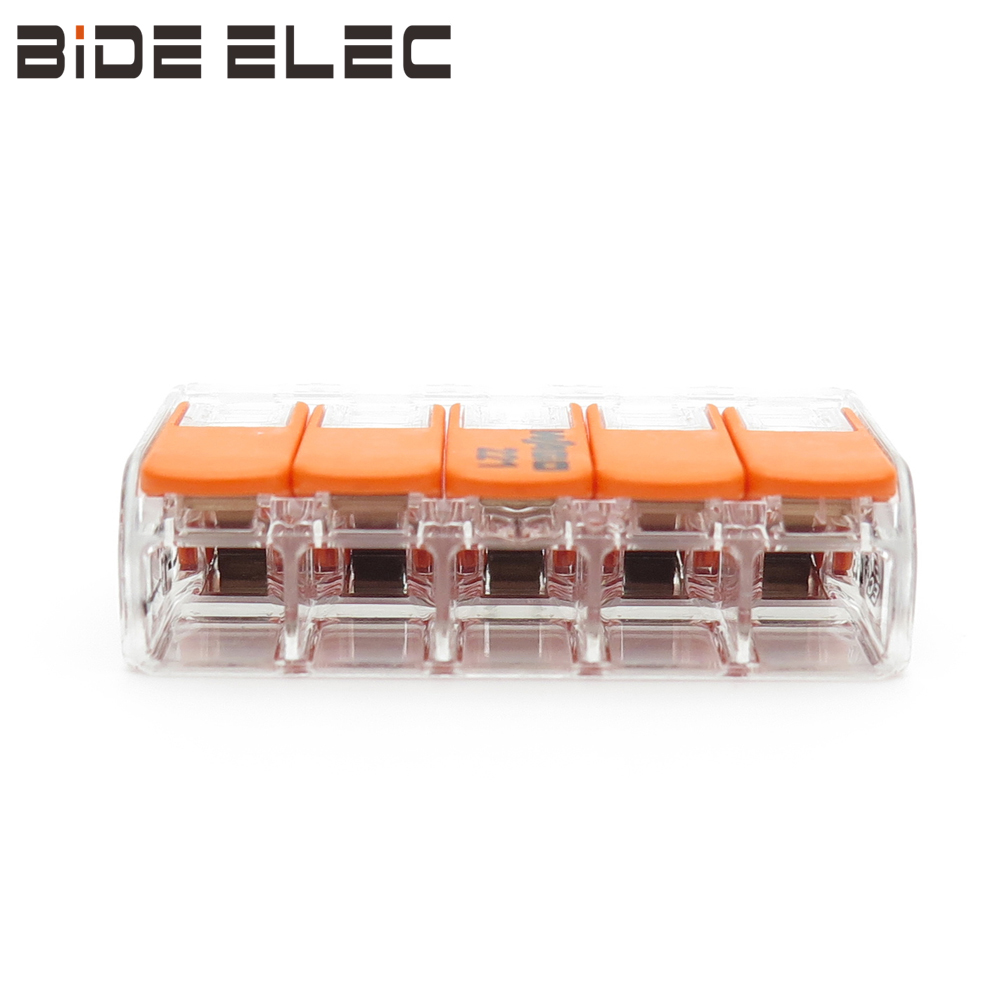

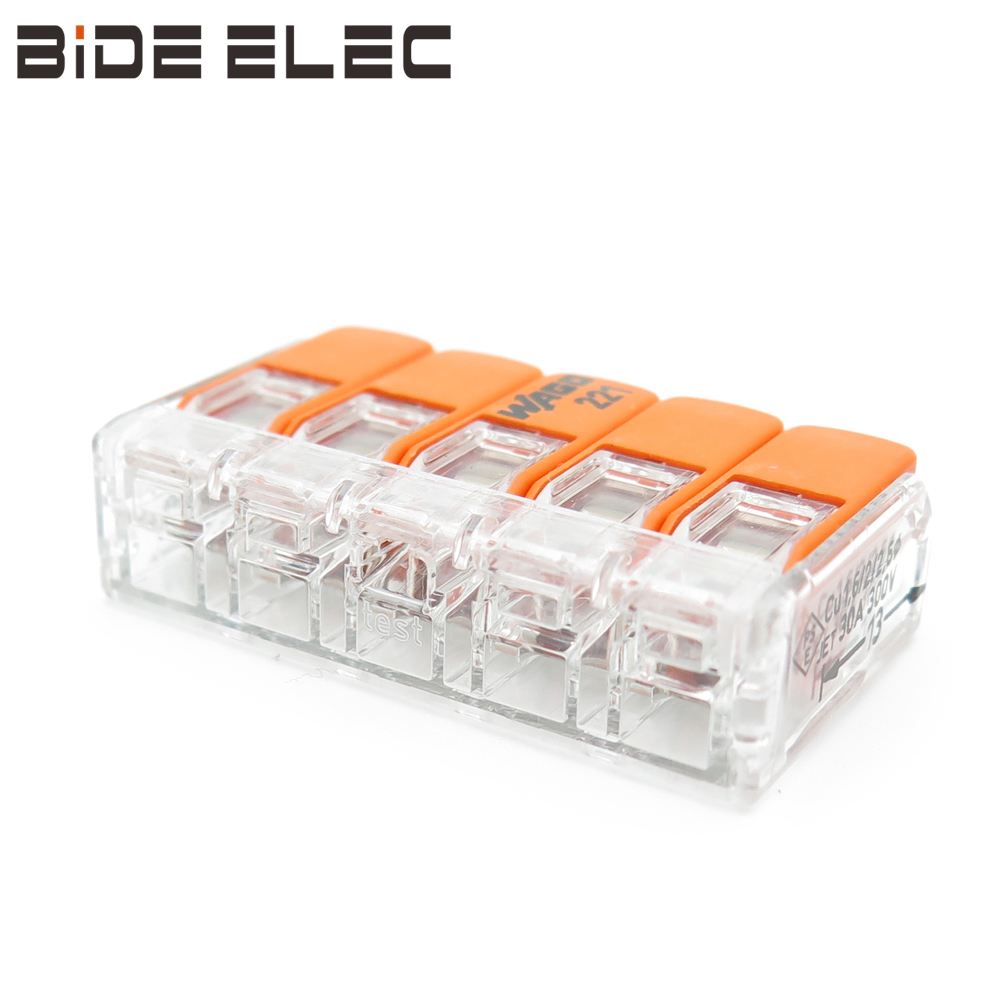

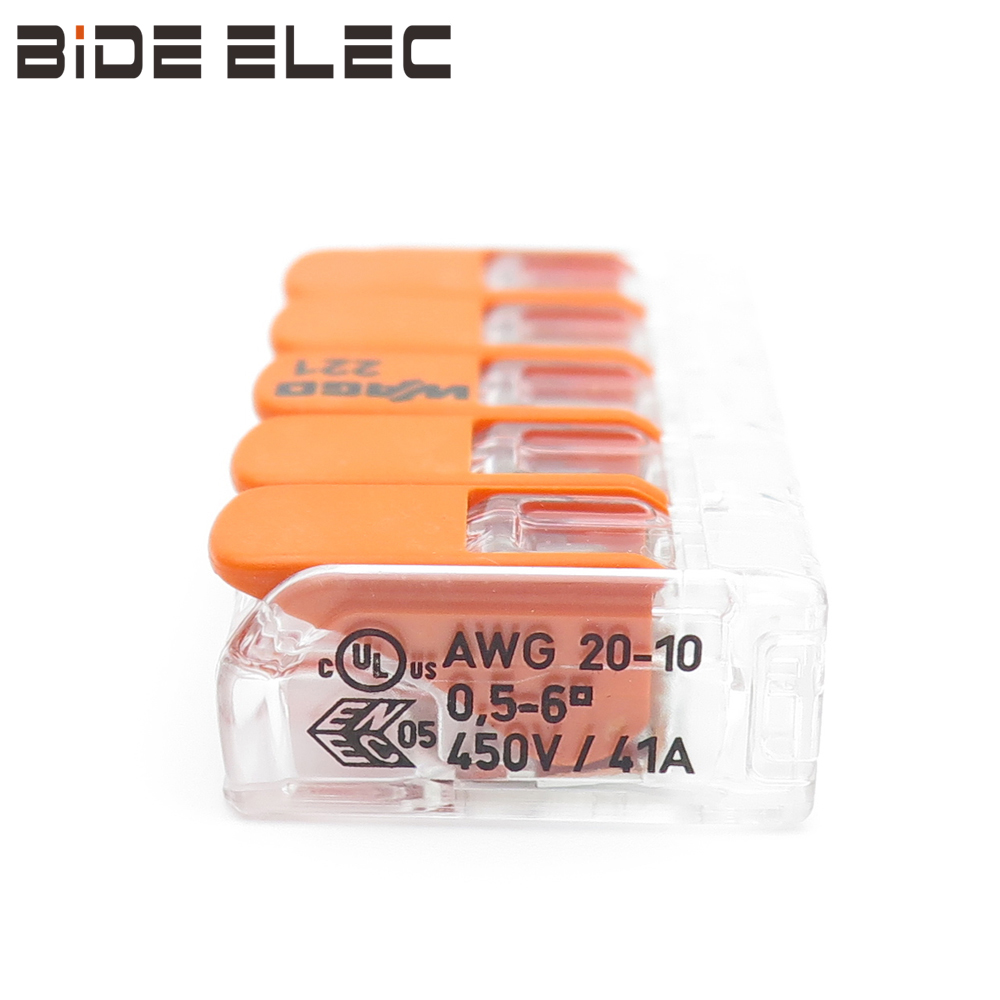

WAGO 221-615 Installation Terminal BLocks And Compact Splicing Connector

Market Price: 1.32

Wholesale Price:$ 1.10

WAGO 221-615 is compact splicing connectors, which can be described as wire terminals and connectors for electrical installation, 15 pieces / box ;
WAGO 221-615 connector has five interworking holes, which can connect 0.5-6.0mm2 single / multi strand soft and hard wires at will, which can easily solve the connection troubles and unsafe hidden dangers of different wire diameters and different types of wires, improve the wiring efficiency and increase the safety ;
WAGO terminal has a nylon 66 transparent shell, which makes the internal wiring situation of the terminal clear, and the terminal has its own measuring hole. After wiring, you can use a measuring pen to check whether it has been safely connected. If there is something wrong, you can repeat the wiring with ultra simple operation (open the orange handle, pull out the wire, insert the wire, press the orange handle).
WAGO 221-615 can work normally in 85°C environment, and the maximum temperature can reach 105°C；
WAGO 221 series cnnectors have six models, 221-412, 221-413, 221-415, 221-612, 221-613 and 221-615 ;
WAGO 221 series products have passed almost global certification requirements, including UL, VDE, PSE, Kema, CCA, ABS, DNV GL, LR, CE, CQC, etc. ;

点击购买

Technical parameters:
Rated voltage: 450V
Rated current: 41A
Rated power: 9KW
Applicable wire diameter: 0.5-6mm2 single multi strand soft and hard wire
Stripping length: 13mm
Product size: 21.1 * 36.7 * 10.1mm

Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)

Product Certification:
UL, VDE, PSE, CE, CQC, etc.
